B1288

B1288-TRIP/TOGGLE SWITCH PERFORMANCE

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The Instrument Cluster detects the Trip/Toggle Switch active for greater than 20 seconds.





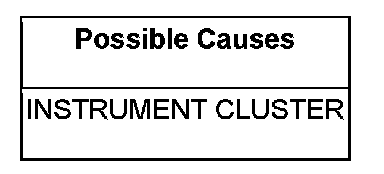

Diagnostic Test

1. CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs.

Press the Trip/Toggle switch three times.

With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Test complete
