B1860

B1860-PASSENGER WINDOW MOTOR CONTROL CIRCUIT HIGH - PDM





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Whenever the module is awake.

- Set Condition:

When both Passenger Window Driver circuits (Up and Down) are supplied with voltage during a window movement command for more than five ms., this code will set.





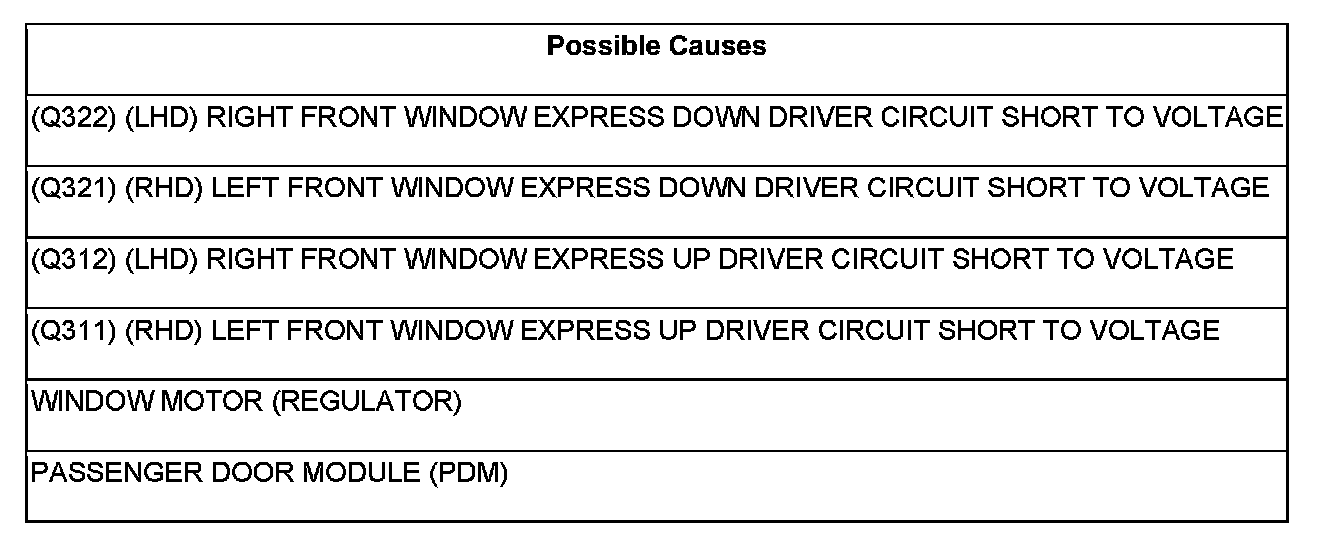

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

NOTE: This test shows text for a Left Hand Drive (LHD) vehicle. Right Hand Drive (RHD) vehicles use the same cavities. Refer to the schematic for different names and circuit numbers.

Turn the ignition on.

With the scan tool, record and erase DTC's

Try to operate the Passenger Window up and down several times.

Wait 30 seconds.

With the scan tool, read DTC's.

Does the scan tool display B1860-PASSENGER WINDOW MOTOR CONTROL CIRCUIT HIGH?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. WINDOW MOTOR SHORTED





With the scan tool, erase DTC's.

Turn the ignition off.

Disconnect the Passenger Window Motor connector.

Turn the ignition on.

Operate the driver window switch up and down several times.

With the scan tool, read DTC's.

Does the scan tool display B1860-PASSENGER WINDOW MOTOR CONTROL CIRCUIT HIGH?

No

- Replace the Passenger Window Motor (regulator).
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

Yes

- Go To 3

3. (Q322) RIGHT FRONT WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORT TO VOLTAGE





Turn the ignition off.

Disconnect the Passenger Door Module C4 connector.

Turn the ignition on.

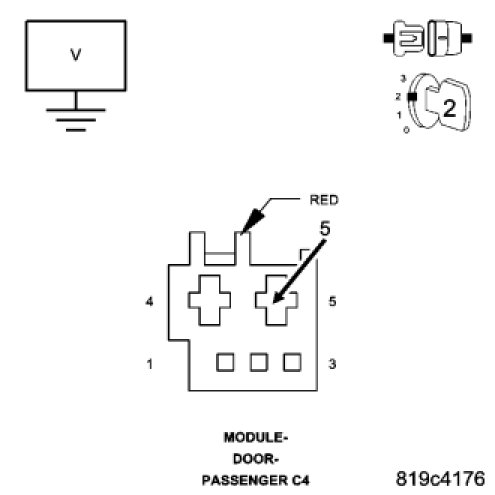

Measure the voltage between the (Q322) Right Front Window Express Down Driver circuit and Ground.

Is there any voltage present?

Yes

- Repair the (Q322) Right Front Window Express Down Driver circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 4

4. (Q312) RIGHT FRONT WINDOW EXPRESS UP DRIVER CIRCUIT SHORT TO VOLTAGE

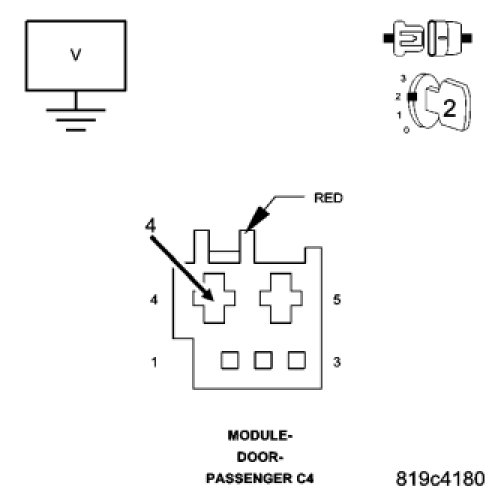

Measure the voltage between the (Q312) Right Front Window Express Up Driver circuit and Ground.

Is there any voltage present?

Yes

- Repair the (Q312) Right Front Window Express Up Driver circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Passenger Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
