P0113

P0113-INTAKE AIR TEMPERATURE SENSOR CIRCUIT HIGH





For a complete wiring diagram refer to Diagrams/Electrical.


- When Monitored:

With the ignition on. Battery voltage greater than 10.4 volts.

- Set Condition:

The PCM detects that the Intake Air Temperature Sensor input voltage is above the maximum acceptable value.







Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.


Diagnostic Test


1. ACTIVE DTC

Start the engine and allow it to reach normal operating temperature.


WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.


NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.

With the scan tool, select View DTCs.

Is the DTC Active at this time?

Yes

- Go To 2

No

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition


2. IAT SENSOR





Turn the ignition off.

Disconnect the Intake Air Temperature Sensor harness connector.

Connect a jumper wire between the (K21) IAT Signal circuit and the (K900) Sensor ground circuit in the IAT Sensor harness connector.

Ignition on, engine not running.

With a scan tool, read the IAT Sensor voltage.


NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus .1 volt) with the jumper wire in place.

Does the scan tool display the voltage as described above?

Yes

- Replace the IAT Sensor.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 3

NOTE: Remove the jumper wire before continuing.


3. (K21) IAT SIGNAL CIRCUIT SHORTED TO VOLTAGE





Ignition on, engine not running.

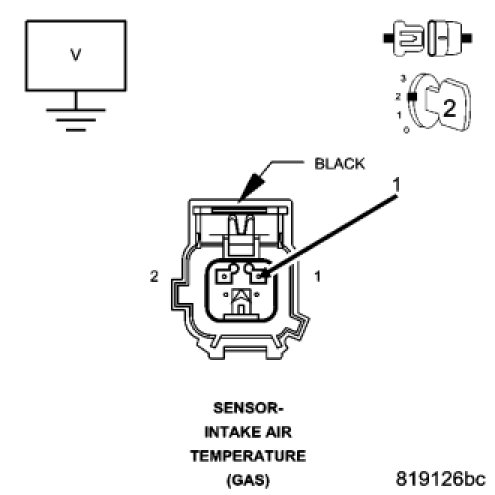

Measure the voltage on the (K21) IAT Signal circuit in the IAT Sensor harness connector.

Is there any voltage present?

Yes

- Repair the short to voltage in the (K21) IAT Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 4


4. (K21) IAT SIGNAL CIRCUIT OPEN





Turn the ignition off.


CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

Measure the resistance of the (K21) IAT Signal circuit from the IAT Sensor harness connector to the appropriate terminal of special tool #8815.

Is the resistance below 5.0 ohms?

Yes

- Go To 5

No

- Repair the open in the (K21) IAT Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test


5. (K900) SENSOR GROUND CIRCUIT OPEN





Measure the resistance of the (K900) Sensor ground circuit from the IAT Sensor harness connector to the appropriate terminal of special tool #8815.

Is the resistance below 5.0 ohms?

Yes

- Go To 6

No

- Repair the open in the (K900) Sensor ground circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test


6. PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Replace and program the Powertrain Control Module.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
