P0463

P0463-FUEL LEVEL SENSOR 1 CIRCUIT HIGH





For a complete wiring diagram refer to Diagrams/Electrical.


- When Monitored:

Ignition on and battery voltage above 10.4 volts.

- Set Condition:

The fuel level sensor signal voltage at the PCM goes above a calibrated voltage for more than 90 seconds. One Trip Fault. Three good trips to turn off the MIL.







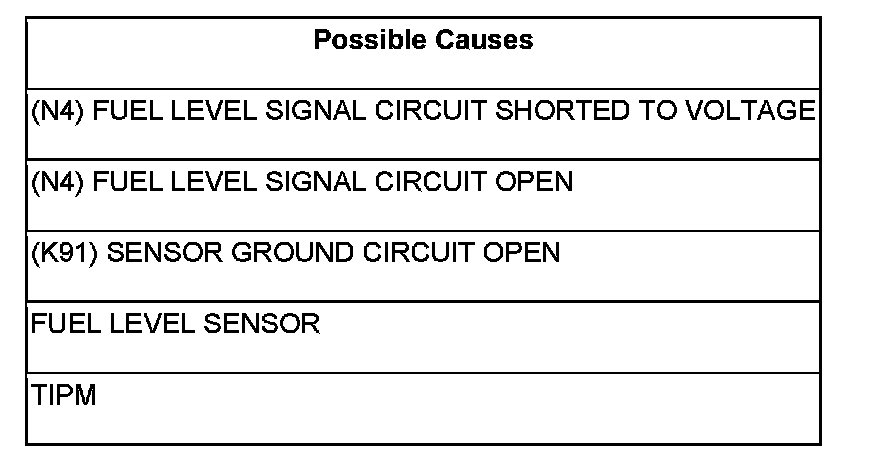

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.


Diagnostic Test


1. ACTIVE DTC

NOTE: Diagnose any CAN - C or CAN - B Communication DTCs before continuing.

Start the engine.

Allow the engine to reach normal operating temperature.

With a scan tool, select View DTCs and record the related Freeze Frame data.


NOTE: It may be necessary to drive the vehicle to meet the conditions to set this DTC, try to repeat the conditions in which the fault originally set by reviewing the Freeze Frame data.

Is the DTC Active at this time?

Yes

- Go To 2

No

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition


2. FUEL LEVEL SENSOR





Turn the ignition off.

Disconnect the Fuel Pump Module electrical harness connector.

Ignition on, engine not running.

With a scan tool, monitor the Fuel Level Signal voltage.

Connect a jumper wire between the (N4) Fuel Level Signal circuit and the (K91) Sensor ground circuit.

Did the Fuel Level voltage change from approximately 5 volts to 0 volts?

Yes

- Replace the Fuel Level Sensor.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 3

NOTE: Remove the jumper wire before continuing.


3. (N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO VOLTAGE





Turn the ignition off.

Disconnect the C7 TIPM harness connector.

Ignition on, engine not running.

Measure the voltage on the (N4) Fuel Level Signal circuit in the Fuel Pump Module harness connector.

Is the voltage above 0 volts?

Yes

- Repair the short to voltage in the (N4) Fuel Level Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 4


4. (N4) FUEL LEVEL SIGNAL CIRCUIT OPEN





Turn the ignition off.

Measure the resistance of the (N4) Fuel Level Signal circuit from the Fuel Pump Module harness connector to the C7 TIPM harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go To 5

No

- Repair the open in the (N4) Fuel Level Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test


5. (K91) SENSOR GROUND CIRCUIT OPEN





Disconnect the C1 TIPM harness connector.

Measure the resistance of the (K91) Sensor Ground circuit from the Fuel Pump Module harness connector to the TIPM harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go To 6

No

- Repair the open in the (K91) Sensor Ground circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test


6. TOTALLY INTEGRATED POWER MODULE

NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors.

Pay particular attention to all Power and Ground circuits.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Replace the Totally Integrated Power Module.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
