P0593
P0593-SPEED CONTROL SWITCH 2 CIRCUIT HIGH
For a complete wiring diagram refer to Diagrams/Electrical.
- When Monitored:
With the ignition key on.
- Set Condition:
Speed control switch input above the maximum acceptable voltage at the PCM. One trip fault.

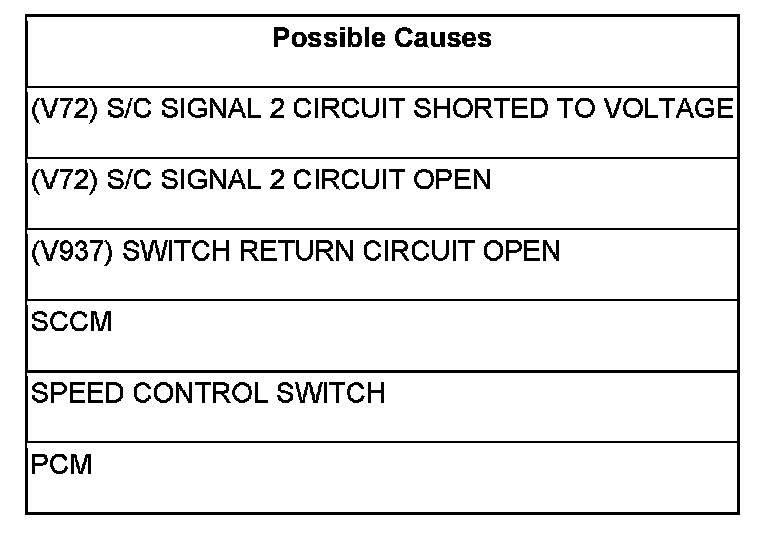

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. ACTIVE DTC
Ignition on, engine not running.
With a scan tool, select View DTCs.
NOTE: It may be necessary to drive the vehicle using the Speed Control for the fault to become Active.
Is the DTC Active at this time?
Yes
- Go To 2
No
- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition
2. SPEED CONTROL SWITCHES
Turn the ignition off.
Remove and disconnect the Speed Control Switches from the steering wheel.
Measure the resistance across each Speed Control Switch.
Monitor the ohmmeter while pressing each function button on each switch.
The following resistance specs are taken between terminals (V72) S/C Switch No.1 Signal and (V937) S/C Switch Return circuits of the Switch when holding the switch button in the following position
Not pressing any switch - 20.5 kohms
On/Off - 0.47 kohms
Set - 5.49 kohms
Coast - 2.94 kohms
Cancel - 1.24 kohms
Resume/Accel - 15.4 kohms
Does the function on the Speed Control Switches have the correct resistance value?
Yes
- Go To 3
No
- Replace the Speed Control Switch that had the incorrect resistance value.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
3. (V72) S/C SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
Disconnect the C3 PCM harness connector.
Ignition on, engine not running.
Measure the voltage on the (V72) S/C Signal 2 circuit in the S/C Switch harness connector.
Is there any voltage present?
Yes
- Repair the short to voltage in the (V72) S/C Signal 2 circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No
- Go To 4
4. (V72) S/C SIGNAL 2 CIRCUIT OPEN
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.
Turn the ignition off.
Measure the resistance of the (V72) S/C Signal 2 circuit from the Speed Control Switch to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms for each measurement?
Yes
- Go To 5
No
- Repair the open in the (V72) S/C Signal 2 circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
5. (V937) S/C RETURN CIRCUIT OPEN
Measure the resistance of the (V937) S/C Return circuit from the S/C Switch harness connector to the appropriate terminals of special tool #8815.
Is the resistance below 5.0 ohms for each measurement?
Yes
- Go To 6
No
- Repair the open in the (V937) S/C Return circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
6. SPEED CONTROL SWITCH VOLTAGE VALUES
Allow the engine to idle.
With a scan tool, monitor the S/C Switch voltage readings.
Take these same voltage measurements with a voltmeter by back probing the (V72) S/C Signal 2 circuit at the switches.
Compare the voltage readings on the voltmeter to what the scan tool displayed.
Are the voltage readings out of the listed specification and is there less than a 0.2 of a volt difference between the voltmeter switch values and the scan tool switch value?
Yes
- Replace the Speed Control Switch.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No
- Go To 7
7. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Were there any problems found?
Yes
- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No
- Replace and program the Powertrain Control Module.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
