U0011

U0011-CAN INTERIOR BUS OFF PERFORMANCE

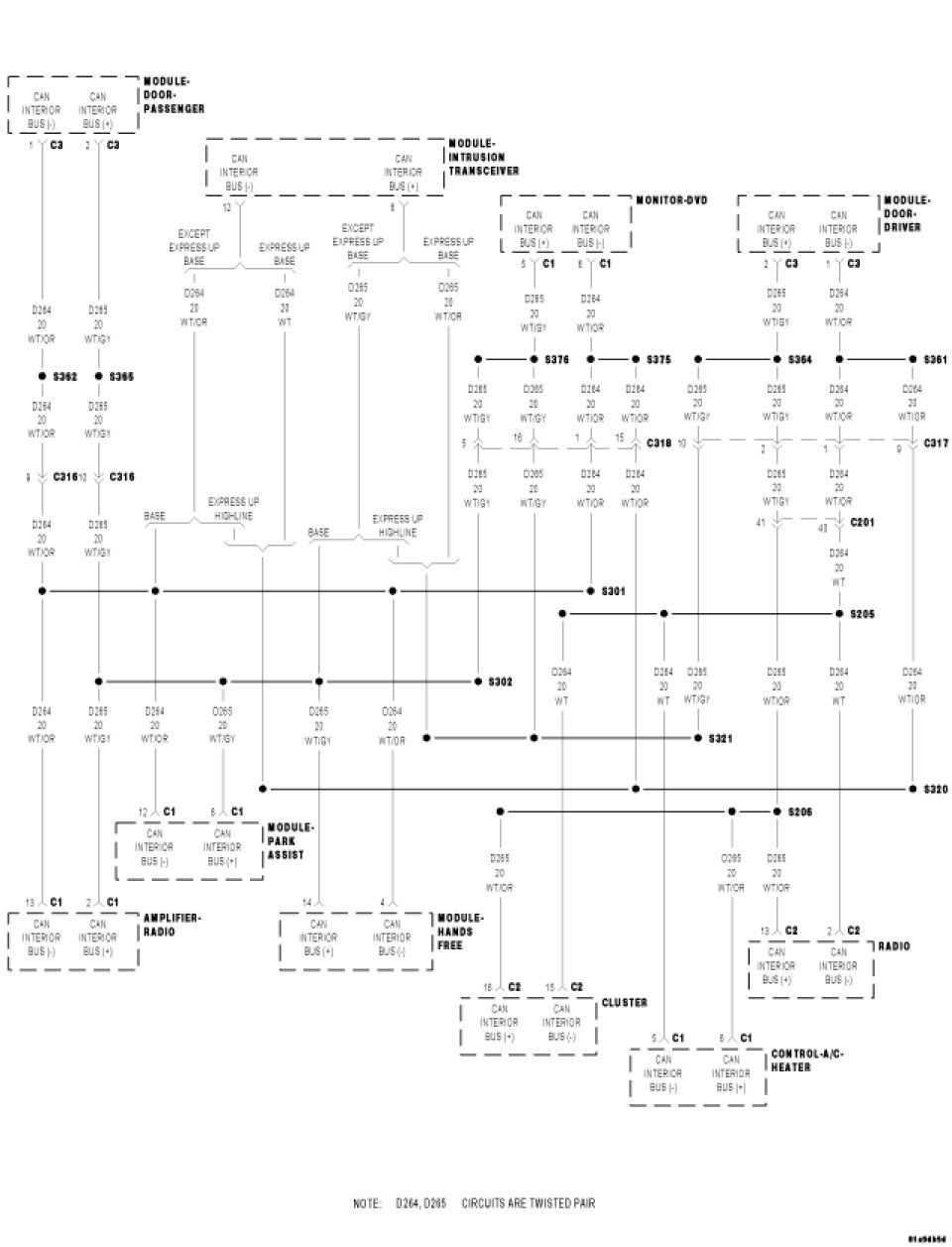

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

A module detects a short in either CAN Interior Bus circuit.

Perform the CAN Interior Bus Communication Failure diagnostic test procedure.
