Canister Purge Solenoid

Component ID: 414
Component : SOLENOID-EVAP/PURGE

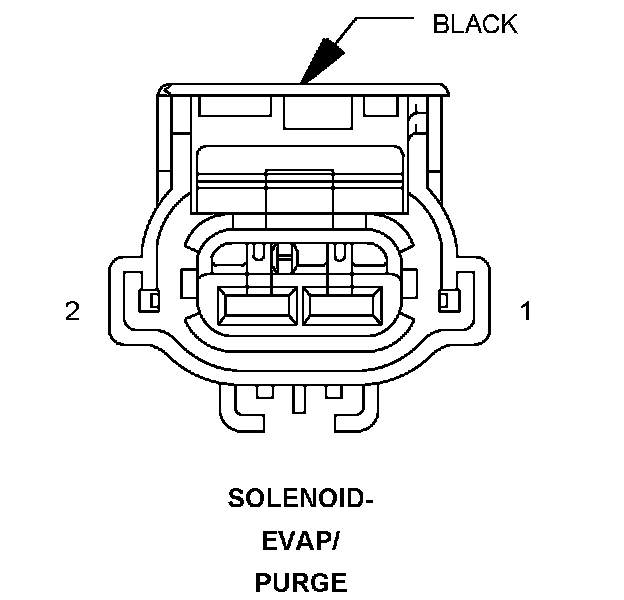

Connector:
Name : SOLENOID-EVAP/PURGE
Color : BLACK
# of pins : 2

Pin Description Circuit
1 EVAP PURGE RETURN K70 18DB/BR
2 EVAP PURGE CONTROL K52 18DB/WT

Component Location - 15

Component Location - 17
