Four Wheel Drive Selector Switch

Component ID: 447
Component : SWITCH-TRANSFER CASE SELECTOR

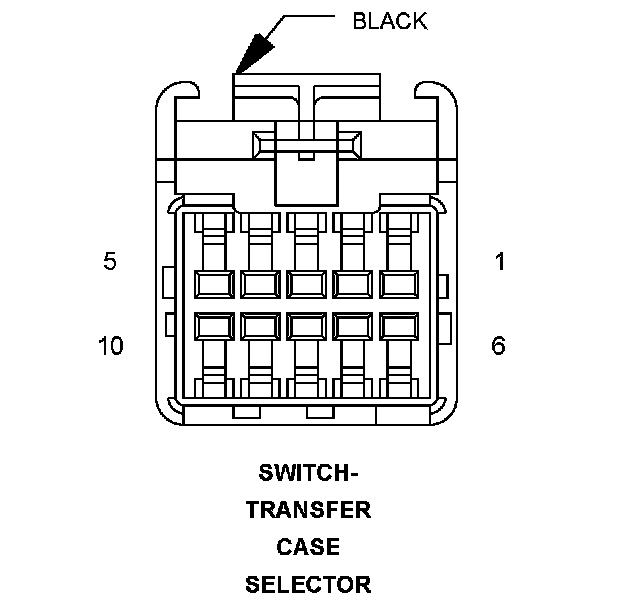

Connector:
Name : SWITCH-TRANSFER CASE SELECTOR
Color : BLACK
# of pins : 10




Pin Description Circuit
1 TRANSFER CASE POSITION SENSOR INPUT K77 20BR/WT
2 - -
3 SIGNAL RETURN Y13 20VT/YL
4 PANEL LAMPS DRIVER E12 20OR/GY
5 GROUND Z911 20BK/VT
6 - -
7 - -
8 - -
9 - -
10 - -

Component Location - 41

Fig. 41:

Component Location - 47
