Keyless Entry Module

Component ID: 199
Component : MODULE-SENTRY KEY REMOTE ENTRY/WCM

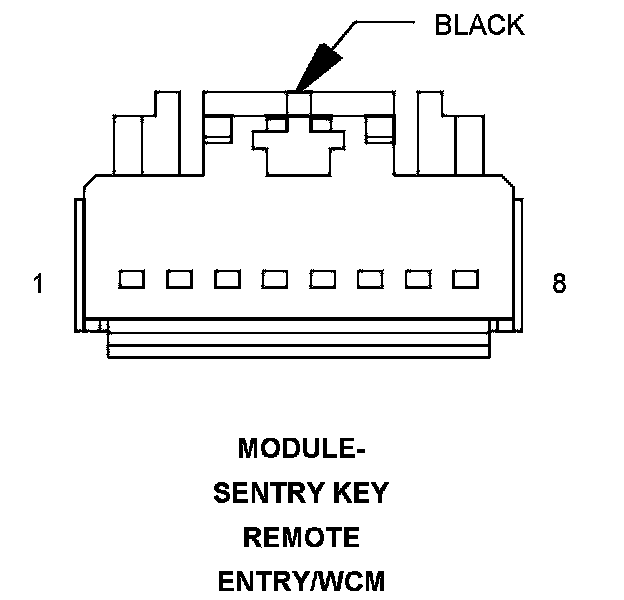

Connector:
Name : MODULE-SENTRY KEY REMOTE ENTRY/WCM
Color : BLACK
# of pins : 8




Pin Description Circuit
1 IGNITION SWITCH SENSE G20 20VT/BR
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/WT
4 GROUND Z910 18BK
5 FUSED B(+) (I.O.D.) A412 18RD
6 CAN C BUS (+) D65 20WT/LG
7 CAN C BUS (-) D64 20WT/LB
8 - -

Component Location - 44

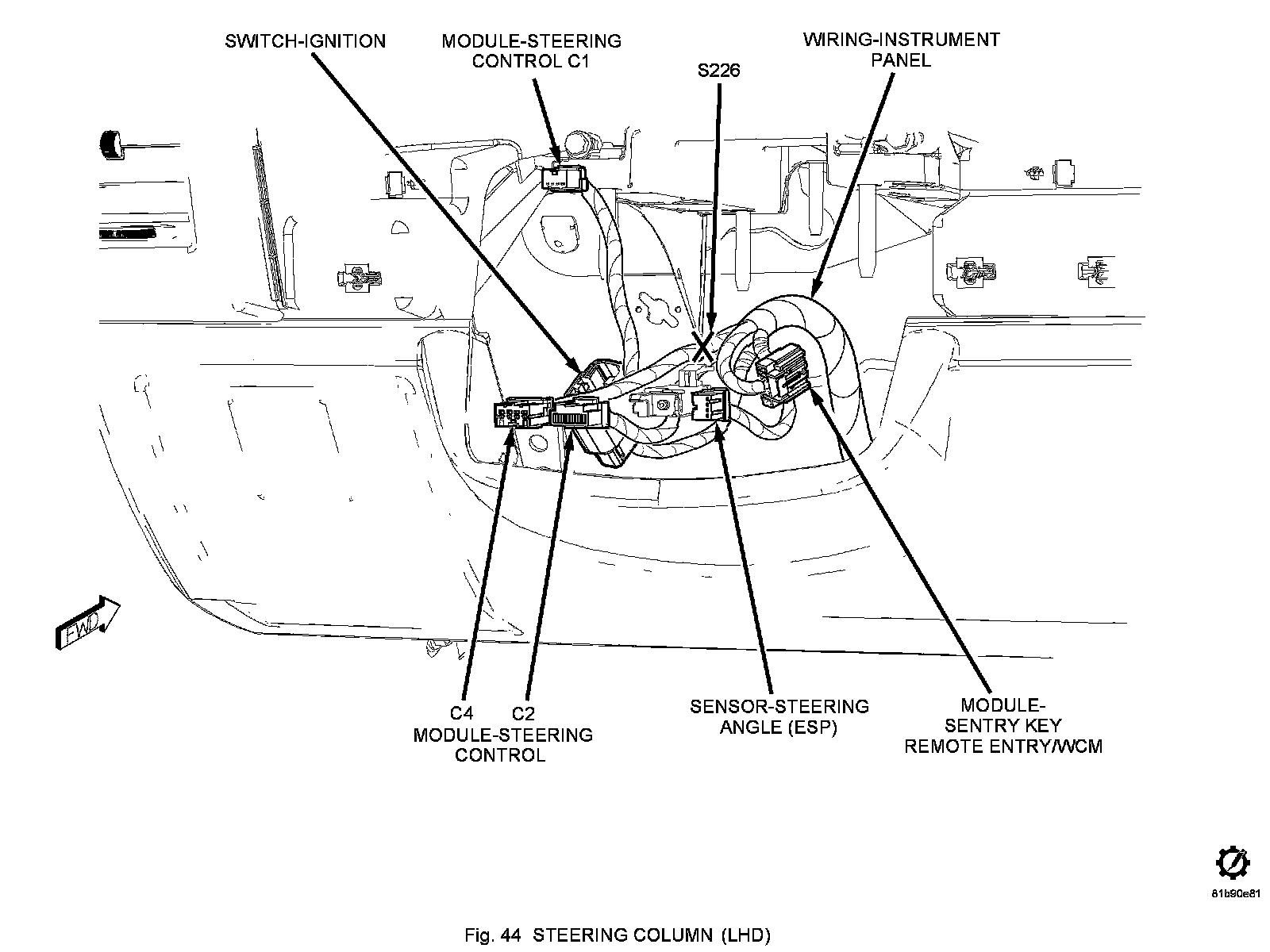

Fig. 44:

Component Location - 49
