Radiator Cooling Fan Motor

Component ID: 67
Component : FAN MODULE-RADIATOR COOLING

Connector:
Name : FAN MODULE-RADIATOR COOLING
Color : DK. GRAY
# of pins : 4




Pin Description Circuit
1 HIGH SPEED RAD FAN RELAY OUTPUT N173 10DB/VT
2 GROUND Z907 10BK
3 LOW SPEED RAD FAN CONTROL (PWM) N23 10DB/DG
4 - -

Component Location - 2




Component Location - 3

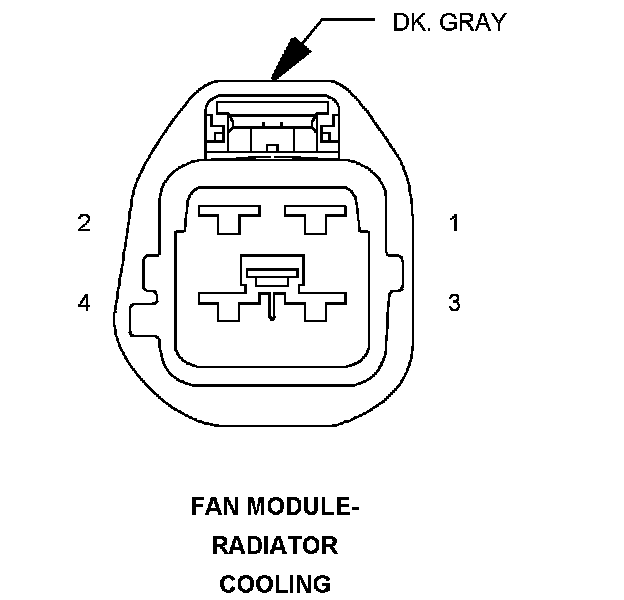

Fig. 3:
