Transfer Case Actuator

Component ID: 211
Component : MOTOR-TRANSFER CASE

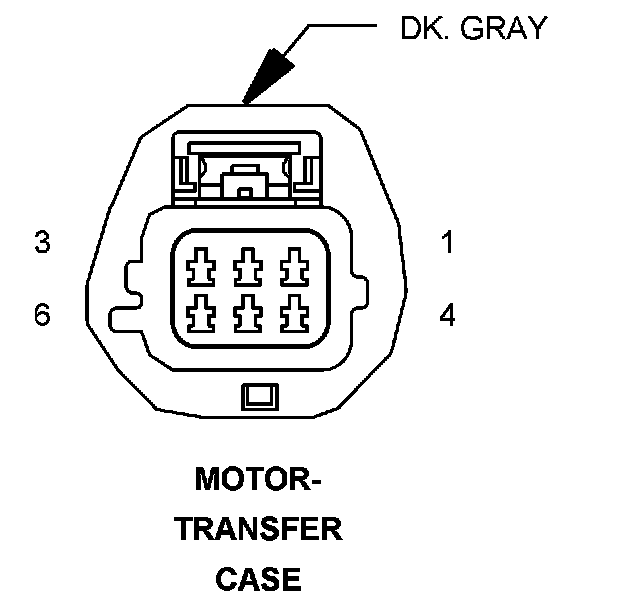

Connector:
Name : MOTOR-TRANSFER CASE
Color : DK. GRAY
# of pins : 6
Gender : FEMALE




Pin Description Circuit
1 TRANSFER CASE BRAKE SIGNAL T300 18YL/GY
2 - -
3 GROUND Z904 18BK/WT
3 GROUND Z904 18BK
4 MODE SENSOR SIGNAL T313 18YL/LB
4 MODE SENSOR SIGNAL T313 18YL/LG
5 FUSED RUN/START RELAY OUTPUT F941 20PK/LG
6 - -

Component Location - 22

Fig. 22:

Component Location - 25




Component Location - 21

Fig. 21:
