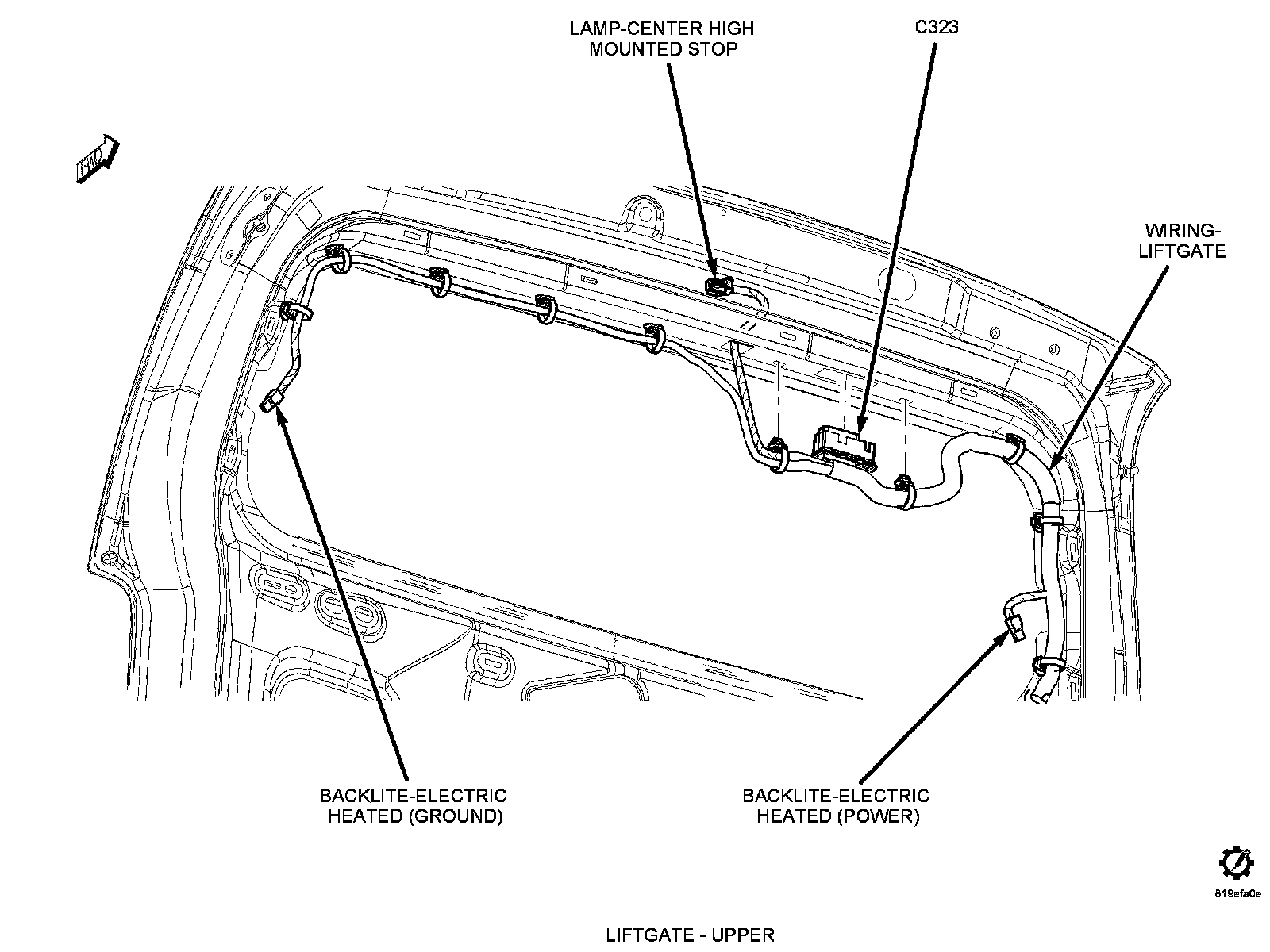

Center Mounted Brake Lamp: Locations

Component ID: 151
Component : LAMP-CENTER HIGH MOUNTED STOP

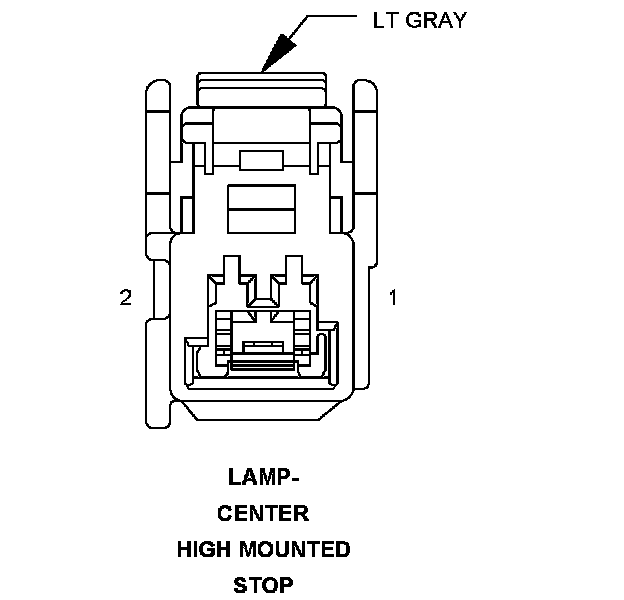

Connector:
Name : LAMP-CENTER HIGH MOUNTED STOP
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 GROUND Z920 18BK/LB
2 BRAKE LAMP SWITCH OUTPUT L51 18WT/DG

Component Location - 66
