Windshield Washer Pump: Locations

Component ID: 223
Component : PUMP-WASHER-WINDSHIELD

Connector:
Name : PUMP-WASHER-WINDSHIELD
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 REAR WASHER PUMP MOTOR CONTROL W20 16BR/YL
2 FRONT WASHER PUMP MOTOR CONTROL W10 16BR

Component Location - 4




Component Location - 5

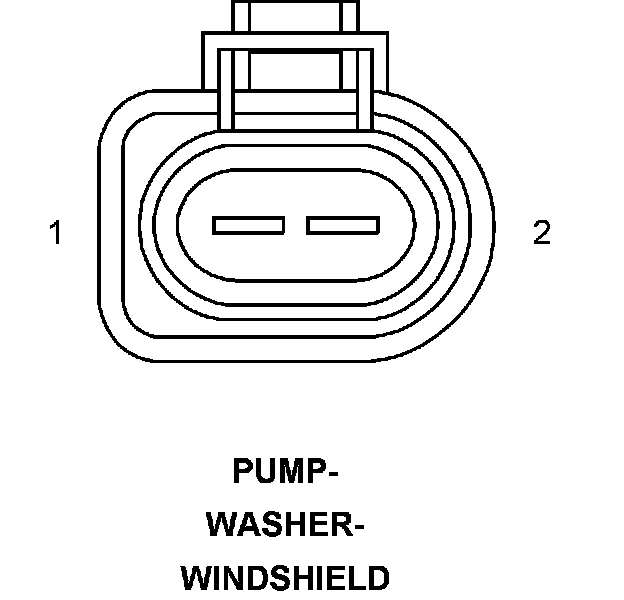

Fig. 5:
