B147D

B147D-CHANNEL 6 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER






For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:
- With the ignition on. Radio volume at 25 or higher.
- Set Condition:
- The amplifier detects that the output circuits are shorted together.






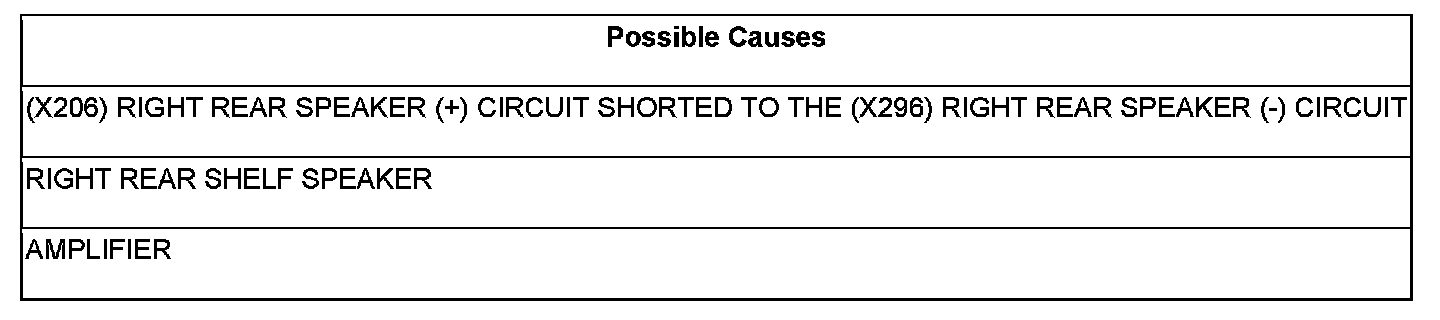

Diagnostic Test

1. CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, erase Amplifier DTCs.

Turn the radio on.

Turn the volume level to 25.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B147D-CHANNEL 6 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. CHECK THE OPERATION OF THE RIGHT REAR SPEAKER

Disconnect the Right Rear Speaker.

Measure the resistance of the speaker between the two terminals.

Is the resistance of the speaker less than 1 ohm?

Yes

- Replace the Right Rear Speaker.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3
-

3. CHECK THE (X206) RIGHT REAR SPEAKER (+) CIRCUIT, AND THE (X296) RIGHT REAR SPEAKER (-) CIRCUITS FOR A SHORT TOGETHER

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Measure the resistance between the (X206) Right Rear Speaker (+) circuit, and the (X296) Right Rear Speaker (-) circuit.

Is the resistance below 5.0 ohms?

Yes

- Repair the (X206) Right Rear Speaker (+) circuit, and the (X296) Right Rear Speaker (-) circuit for a short together.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Amplifier.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
