B165D

B165D-PARK LAMP CONTROL CIRCUIT HIGH

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

When the Park Lamps are activated

- Set Condition:

When the Totally Integrated Power Module detects a short to battery on the Driver circuit.






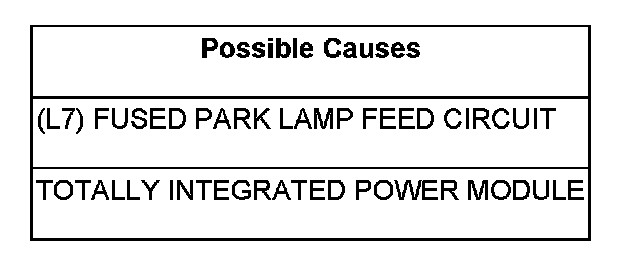

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

Clear all TIPM DTC's

Turn the Park Lamps on.

With the scan tool, read DTC's.

Does the scan tool read: B165D-PARK LAMP CONTROL CIRCUIT HIGH?

Yes

- Go To2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

2. (L7) FUSED PARK LAMP FEED CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the TIPM C9 harness connector.

Disconnect the Park Lamp harness connectors.

Turn the ignition on.

Measure for voltage on the (L7) Fused Park Lamp Feed circuit.

Is the voltage above 10.0 volts?

Yes

- Repair the (L7) Fused Park Lamp Feed circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Totally Integrated Power Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
