B181E

B181E-HOOD AJAR INPUT CIRCUIT PERFORMANCE

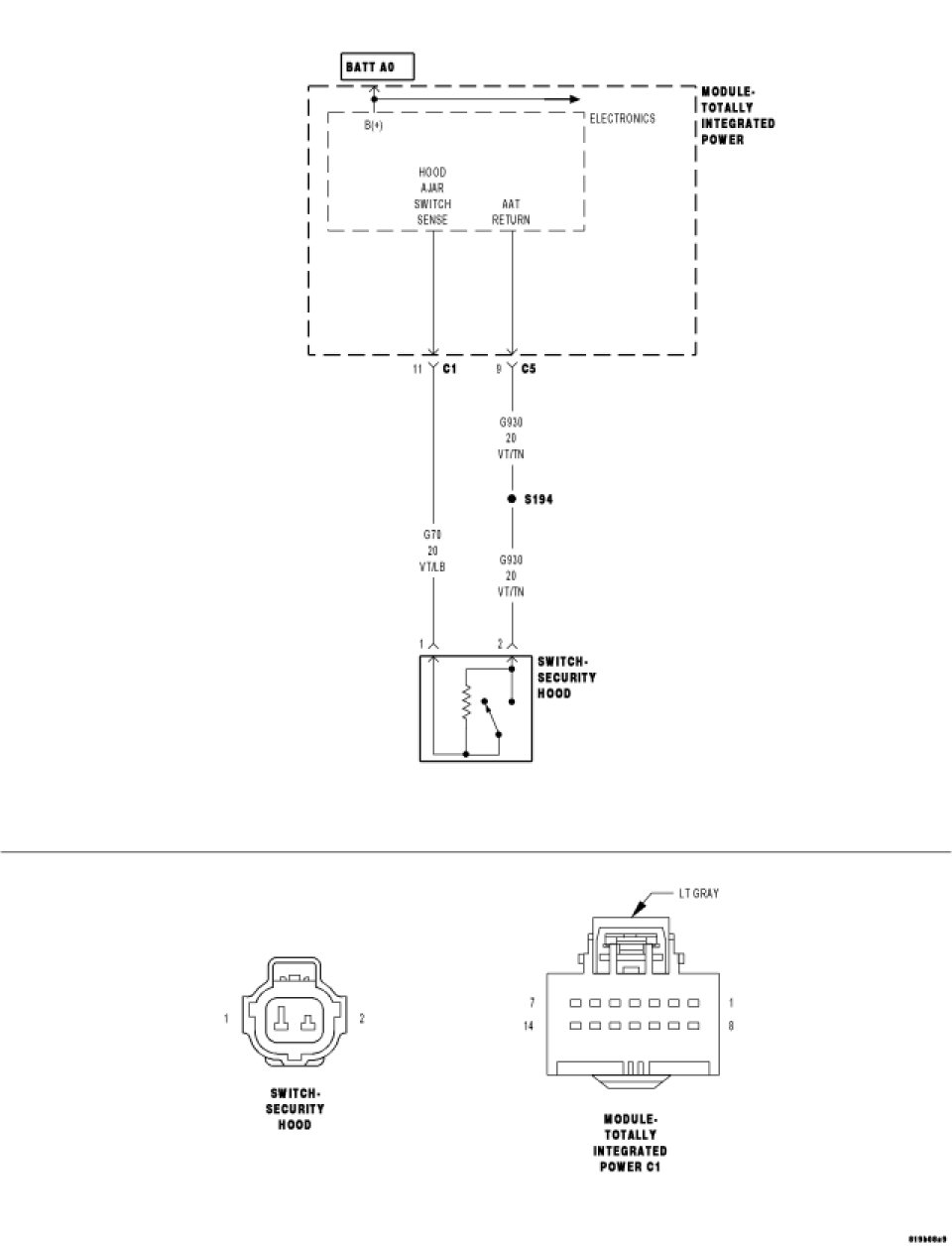

For a complete wiring diagram refer to Diagrams/Electrical

- When Monitored:

Continuously

- Set Condition:

When the range of the voltage on the Hood Ajar Switch Sense circuit is other than expected this code will set.






Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

NOTE: Open the hood and ensure the Hood Security Switch is connected before proceeding.

With the scan tool, record and erase DTC's

Close the hood.

Cycle the ignition from on to off.

Turn the ignition on.

Open then close the hood.

With the scan tool, read DTC's.

Does the scan tool display B181E-HOOD AJAR INPUT CIRCUIT PERFORMANCE?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. INCORRECT HOOD SECURITY SWITCH INSTALLED

Inspect the retainer ring on the hood security switch.

A dark brown retainer ring identifies the underhood security switch used for certain export applications, while a white retainer ring identifies the remote starter system application.

Is the correct switch installed?

Yes

- Go To 3

No

- Replace the Hood Security Switch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

3. HOOD SECURITY SWITCH OPEN

Disconnect the Hood Security Switch harness connector.

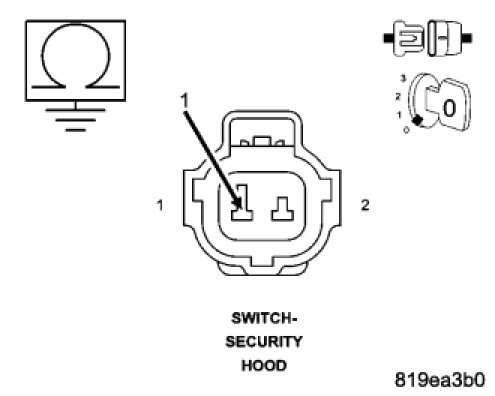

Depress the switch plunger and measure the resistance between the two terminals of the switch.

Is the resistance approximately 1000 ohms?

Yes

- Go To 4

No

- Replace the Hood Security Switch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

4. (G930) AAT RETURN CIRCUIT OPEN

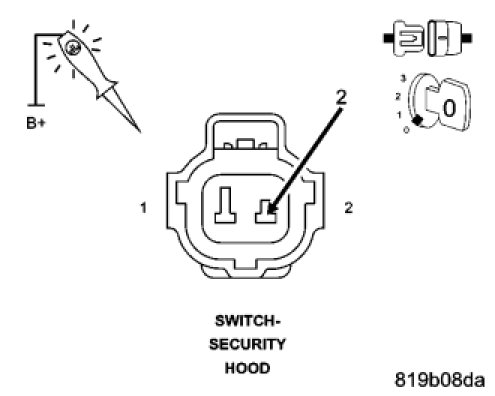

Using a 12-volt Test Light connected to 12-volts, check the (G930) AAT Return circuit.

Does the test light illuminate?

Yes

- Go To 5

No

- Repair the (G930) AAT Return circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

5. (G70) HOOD AJAR SWITCH SENSE CIRCUIT SHORT TO VOLTAGE





Disconnect the TIPM C1 connector.

Turn the ignition on.

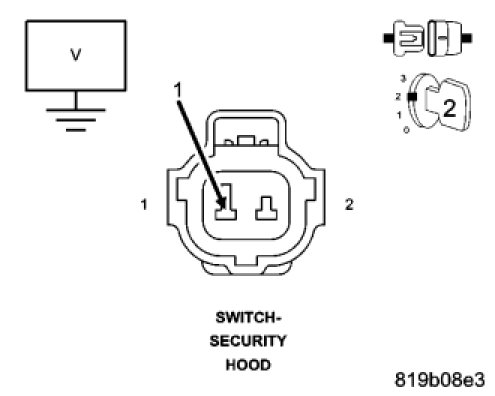

Measure the voltage between the (G70) Hood Ajar Switch Sense circuit and ground.

Is there any voltage present?

Yes

- Repair the (G70) Hood Ajar Switch Sense circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 6
-

6. (G70) HOOD AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND





Turn the ignition off.

Measure between the (G70) Hood Ajar Switch Sense circuit and ground.

Is the resistance below 5.0 ohms?

Yes

- Repair the (G70) Hood Ajar Switch Sense circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 7
-

7. (G70) HOOD AJAR SWITCH SENSE CIRCUIT OPEN





Turn the ignition off.

Measure the resistance of the (G70) Hood Ajar Switch Sense circuit between the TIPM connector and the Hood Security Switch connector.

Is the resistance below 2.0 ohms?

Yes

- Replace the Totally Integrated Power Module (TIPM).
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the (G70) Hood Ajar Switch Sense circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
