B1B09
B1B09-PASSENGER AIRBAG SQUIB 1 CIRCUIT HIGH
For a complete wiring diagram refer to Diagrams/Electrical.
- When Monitored:
With the ignition on, the ORC monitors the voltage on the Passenger Squib 1 circuits.
- Set Condition:
When the ORC detects voltage on the Passenger Squib 1 circuits.
Diagnostic Test
1. DETERMINE ACTIVE OR STORED DTC
NOTE: Ensure the battery is fully charged.
NOTE: The Scan Tool, SRS Airbag Load Tool MRL 8443 and DVOM are required to perform the following test.
Select Active or Stored DTC.
Is the DTC active or stored?
ORC - ACTIVE DTC
- Go To 2
ORC - STORED DTC
- Go To 5
2. PASSENGER AIRBAG SHORTED TO BATTERY
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Disconnect the Passenger Airbag connector(s).
WARNING: To avoid serious or fatal injury, do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed.
NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool and appropriate Jumper to the Passenger Airbag connector(s).
WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.
With the scan tool, read the active Occupant Restraint Controller DTC.
Does the scan tool display PASSENGER AIRBAG SQUIB 1 CIRCUIT HIGH?
Yes
- Go To3
No
-
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
- Replace the Passenger Airbag.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
3. (R42) PASSENGER SQUIB 1 LINE 1 AND OR (R44) PASSENGER SQUIB 1 LINE 2 SHORTED TO BATTERY.
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool and Jumper from the Passenger Airbag Squib Harness connector.
Disconnect the ORC harness connector(s).
NOTE: Check connectors - Clean and repair as necessary.
Connect the Load Tool 8443-25 ORC Adaptor to the ORC harness connector.
Measure the voltage on the (R42) Passenger Squib 1 Line 1 circuit between the Passenger Airbag Squib harness connector and ground.
Measure the voltage on the (R44) Passenger Squib 1 Line 2 circuits between the Passenger Airbag Squib harness connector and ground.
Is there any voltage on either circuit?
Yes
-
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
- Repair (R42) Passenger Squib 1 Line 1 or (R44) Passenger Squib 1 Line 2 shorted to battery.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
No
- Go To 4
4. OCCUPANT RESTRAINT CONTROLLER
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
WARNING: If the Occupant Restraint Controller is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.

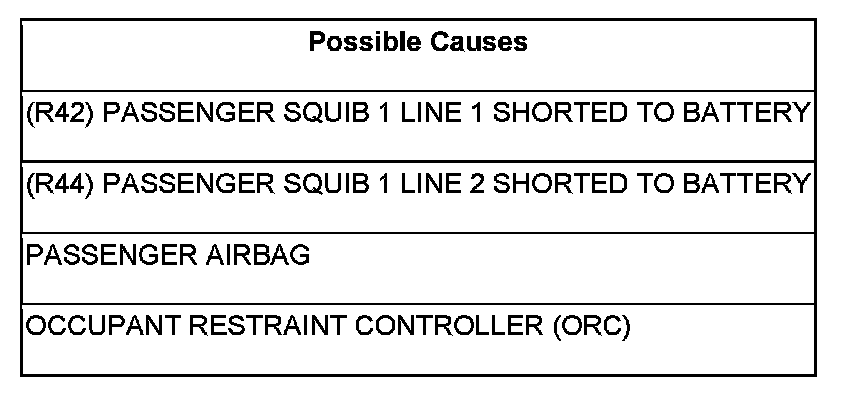

If there are no possible causes remaining, view repair.
Repair
- Replace the Occupant Restraint Controller.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
5. STORED ORC DTC
With the scan tool, record and erase all DTC from all Airbag System Modules.
If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
The following additional checks may assist you in identifying a possible intermittent problem.
Reconnect any disconnected components and harness connector.
WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.
If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
IF only stored codes return continue the test until the problem area has been isolated.
In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTC present?
Yes
- Select appropriate symptom from Symptom List.
No
- No problem found at this time. Erase all codes before returning vehicle to customer.
