P0336

P0336-CRANKSHAFT POSITION (CKP) SENSOR SIGNAL





For complete wiring diagrams refer to Diagrams/Electrical.


- When Monitored:

With the key on.

- Set Condition:

The voltage detected at the Crankshaft position sensor is below a calibrated value.

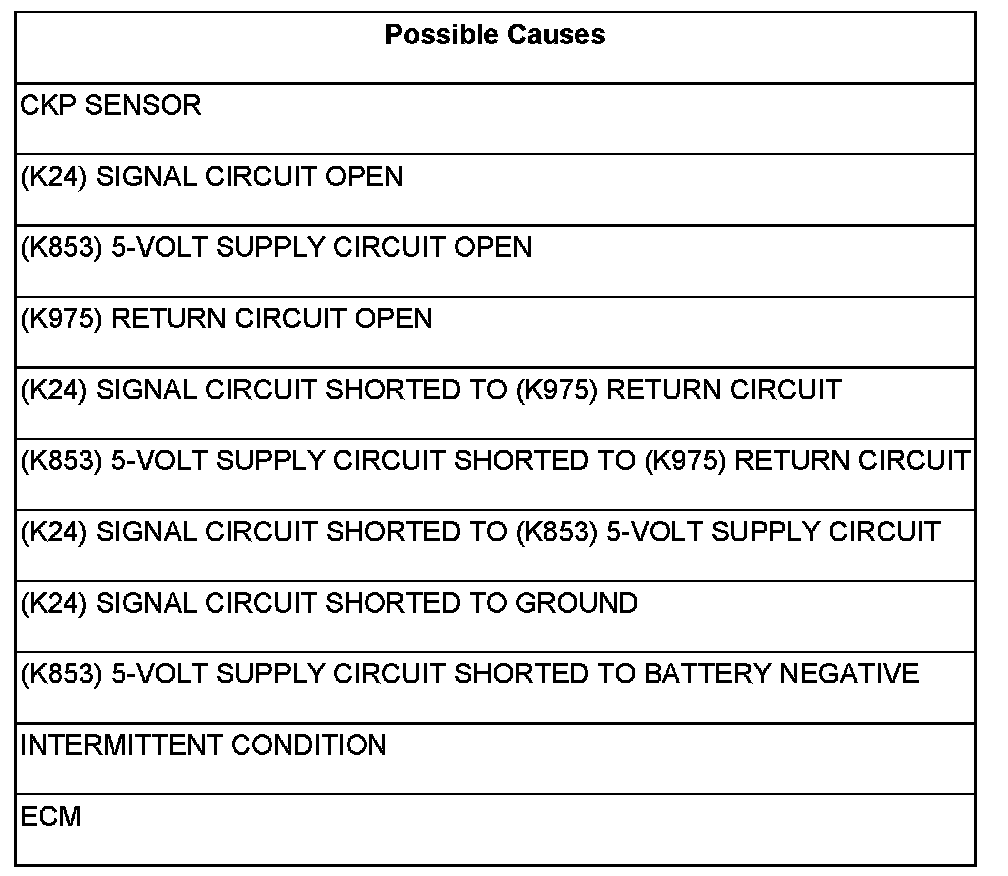

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test


1. CKP SENSOR

Disconnect the CKP sensor harness connector.


NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance between the (K853) 5-volt supply circuit and the (K24) signal circuit of the sensor.

Is the resistance between 900 and 1100 ohms?

Yes

- Go To 2

No

- Replace the CKP sensor.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

2. (K24) SIGNAL CIRCUIT OPEN





Disconnect the ECM harness connectors.

Disconnect the CKP sensor harness connector.

Check connectors - Clean/repair as necessary.

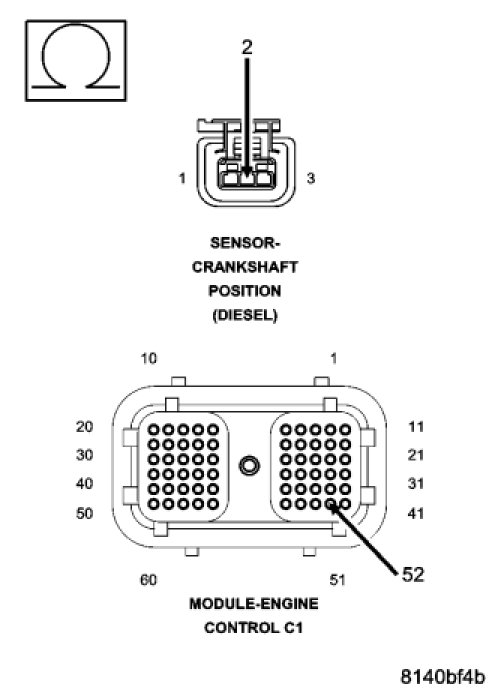

Measure the resistance of the (K24) signal circuit between the ECM harness connector and the CKP sensor harness connector.

Is the resistance less than 10 ohms?

Yes

- Go To 3

No

- Repair the open (K24) signal circuit.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

3. (K853) 5-VOLT SUPPLY CIRCUIT OPEN





Measure the resistance of the (K853) 5-volt supply circuit between the ECM harness connector and the CKP sensor harness connector.

Is the resistance less than 10 ohms?

Yes

- Go To 4

No

- Repair the open (K853) 5-volt supply circuit.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

4. (K975) RETURN CIRCUIT OPEN

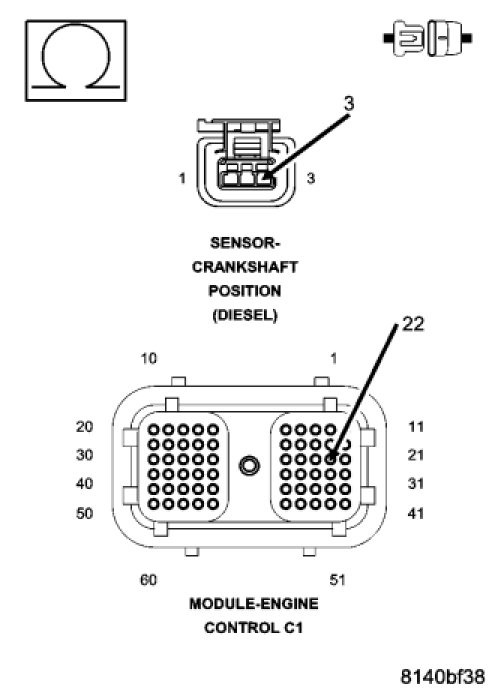

Measure the resistance of the (K975) return circuit between the ECM harness connector and the CKP sensor harness connector.

Is the resistance less than 10 ohms?

Yes

- Go To 5

No

- Repair the open (K975) return circuit.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

5. (K24) SIGNAL CIRCUIT SHORTED TO (K975) RETURN CIRCUIT





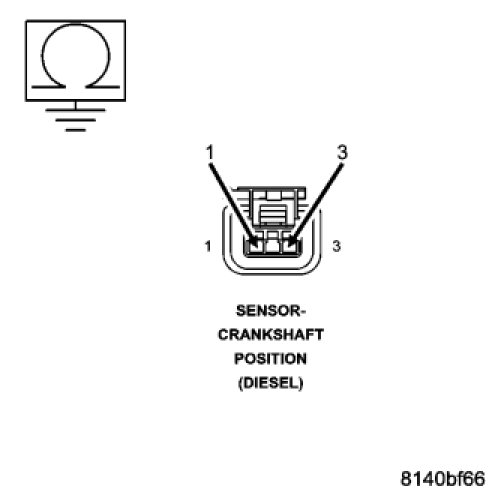

Measure the resistance between the (K24) signal circuit and the (K975) return circuit in the sensor connector.

Is the resistance greater than 100k Ohms?

Yes

- Go To 6

No

- Repair the short circuit or replace the engine harness.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

6. (K853) 5-VOLT SUPPLY CIRCUIT SHORTED TO (K975) RETURN CIRCUIT





Measure the resistance between the (K853) 5-volt supply circuit and the (K975) return circuit in the sensor connector.

Is the resistance greater than 100k Ohms?

Yes

- Go To 7

No

- Repair the short circuit or replace the engine harness.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

7. (K24) SIGNAL CIRCUIT SHORTED GROUND





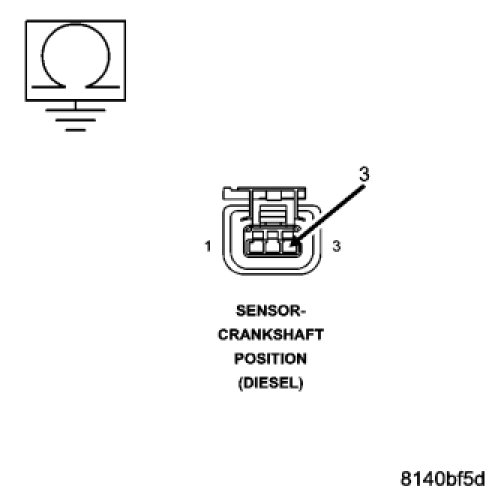

Measure the resistance between the (K24) signal circuit and ground.

Is the resistance greater than 100k Ohms?

Yes

- Go To 8

No

- Repair the short circuit or replace the engine harness.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

8. (K853) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND





Measure the resistance between the (K853) 5-volt supply circuit and ground.

Is the resistance greater than 100k Ohms?

Yes

- Go To 9

No

- Repair the short circuit or replace the engine harness.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

9. (K24) SIGNAL CIRCUIT SHORTED TO (K853) 5-VOLT SUPPLY CIRCUIT





Measure the resistance between the (K24) signal circuit and the (K853) 5-volt supply circuit in the sensor connector.

Is the resistance greater than 100k Ohms?

Yes

- Go To 10

No

- Repair the short circuit or replace the engine harness.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

10. ECM





Reconnect the ECM harness connectors.

Ignition on, engine not running.

With the scan tool, erase DTCs.

Connect a jumper wire between the sensor supply circuit and the sensor return circuit in the sensor harness connector.

Did DTC P0337 set?

Yes

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition
- Refer to Engine / Testing and Inspection.

No

- Replace the ECM.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
