P0514

P0514-BAT TEMPERATURE SENSOR RATIONALITY

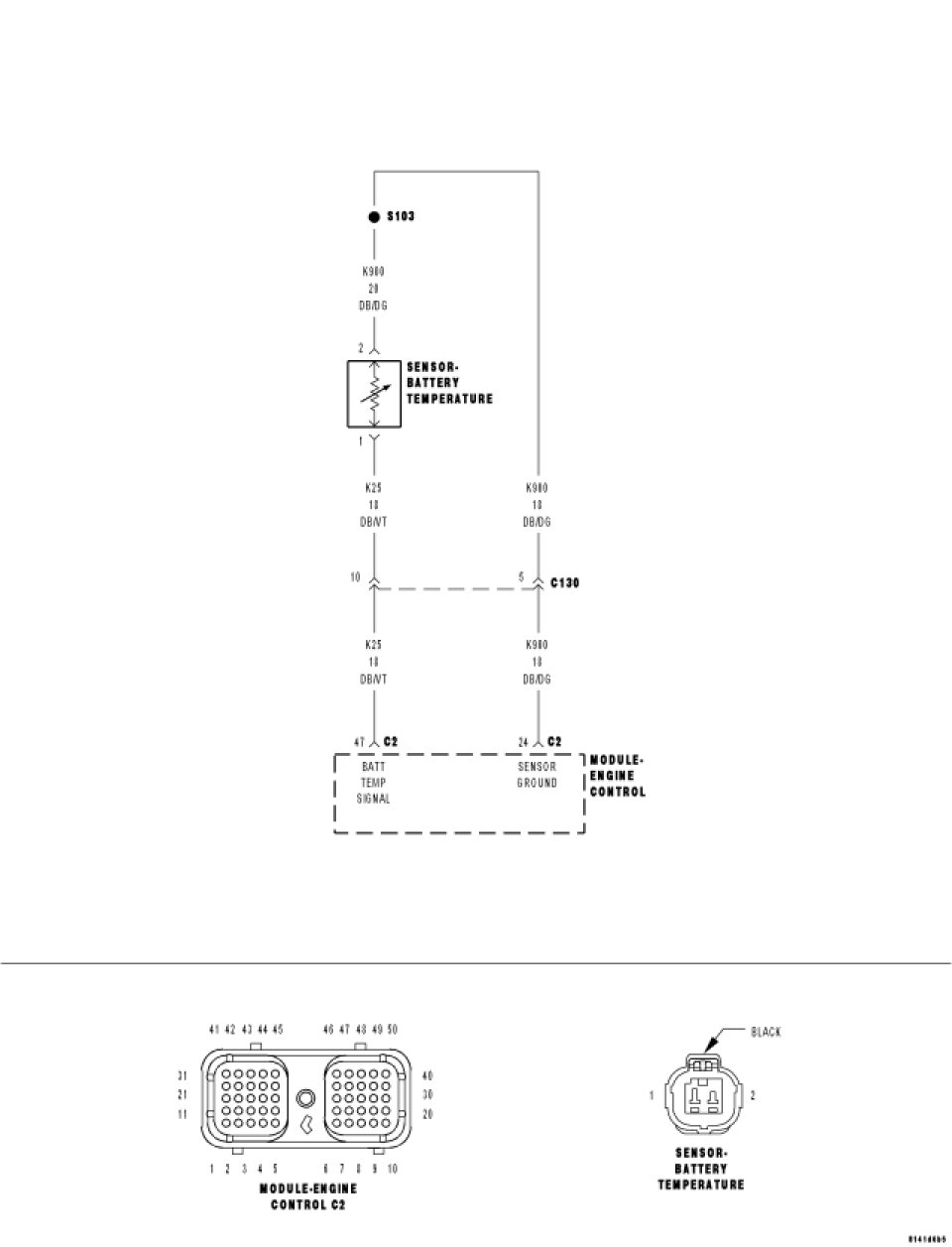

For complete wiring diagrams refer to Diagrams/Electrical.


- When Monitored:

While the engine is running.

- Set Condition:

The ECM does not read a change in value from the sensor over time.







Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test


1. BATTERY TEMP SENSOR

Remove the temperature sensor and reconnect the wiring harness connector to the sensor.

Monitor scan tool, while heating the sensor with an external heat source (DO NOT USE OPEN FLAME).

Does the reading from the sensor increase at least -15° C (5° F on the scan tool?

Yes

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition

No

- Replace the battery temperature sensor.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
