P0630

P0630-VIN NOT ENTERED ERROR

For complete wiring diagrams refer to Diagrams/Electrical.


- When Monitored:

While the key is on.

- Set Condition:

The VIN was not calibrated into the ECM.







Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

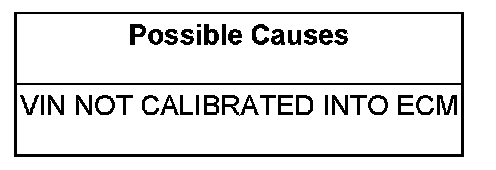

1. VIN NOT CALIBRATED INTO ECM

Using the scan tool, recalibrate the ECM with the proper VIN.

Did the DTC P0630 reset?

Yes

- Replace the ECM.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Test Complete.
