P0980

P0980-SHIFT SOLENOID C CONTROL CIRCUIT HIGH





For a complete wiring diagram refer to Diagrams/Electrical. Electrical Diagrams


Theory of Operation


The Shift (On/Off) Solenoid 3 is used to switch hydraulic paths on the Shift Valve 3 which will direct a gear shift.



When Monitored:
- Ignition on, engine running.

Set Condition:
- Solenoid resistance is greater than or equal to 100k ohms for more than 100 ms.







Always perform the AS68RC Pre-Diagnostic Troubleshooting procedure before proceeding. AS68RC Pre-Diagnostic Troubleshooting Procedure



Diagnostic Test


1. CHECK IF DTC IS CURRENT

With the scan tool, view Transmission DTCs.

Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

Yes

- Go To 2

No

- Go To 7



2. CHECK THE (T810) SHIFT (ON/OFF) SOLENOID 3 CONTROL CIRCUIT FOR AN OPEN





Turn the ignition off to the lock position.

Disconnect the Transmission Solenoid Assembly C2 harness connectors.

Disconnect the TCM C3 harness connector.


NOTE: Check connectors - Clean/repair as necessary.

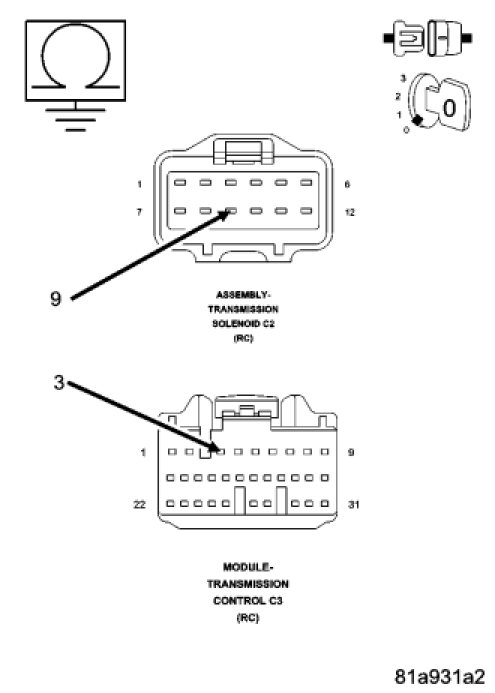

Measure the resistance of the (T810) Shift (On/Off) Solenoid 3 Control circuit between the Transmission Solenoid Assembly C2 harness connector and the TCM C3 harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go To 3

No

- Repair the (T810) Shift (On/Off) Solenoid 3 Control circuit for an open.
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test



3. CHECK THE (T810) SHIFT (ON/OFF) SOLENOID 3 CONTROL CIRCUIT FOR A SHORT TO GROUND





Measure the resistance between ground and the (T810) Shift (On/Off) Solenoid 3 Control circuit.

Is the resistance below 100k ohms?

Yes

- Repair the (T810) Shift (On/Off) Solenoid 3 Control circuit for a short to ground.
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test

No

- Go To 4



4. CHECK THE (T810) SHIFT (ON/OFF) SOLENOID 3 CONTROL CIRCUIT SHORT TO VOLTAGE





Ignition on, engine not running.

Measure the voltage of the (T810) Shift (On/Off) Solenoid 3 Control circuit.

Is the voltage above 0.5 volt?

Yes

- Repair the (T810) Shift (On/Off) Solenoid 3 Control circuit for a short to voltage.
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test

No

- Go To 5



5. CHECK THE (T810) SHIFT (ON/OFF) SOLENOID 3 CONTROL CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT





Turn the ignition off to the lock position.

Measure the resistance between the (T810) Shift (On/Off) Solenoid 3 Control circuit and all other circuits in the Transmission Solenoid Assembly C2 harness connector.

Is the resistance below 100k ohms between the (T810) Shift (On/Off) Solenoid 3 Control circuit and any other circuit in the Transmission Solenoid Assembly harness connector?

Yes

- Repair the (T810) Shift (On/Off) Solenoid 3 Control circuit for a short to another circuit(s).
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test

No

- Go To 6



6. CHECK THE SHIFT (ON/OFF) SOLENOID 3





Turn the ignition off to the lock position.

Reconnect the Transmission Solenoid Assembly C2 Harness connector.

Measure the resistance of the Shift (On/Off) Solenoid 3 between the (T810) Shift (On/Off) Solenoid 3 and ground at the TCM C3 harness connector.

Is the resistance of the Shift (On/Off) Solenoid 3 13.0 ohms (± 2 ohms)?

Yes

- Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the TCM.
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test

No

- Replace the Shift (On/Off) Solenoid 3.
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test



7. CHECK WIRING AND CONNECTORS

The conditions necessary to set the DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

Check for any Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair as necessary.
- Perform AS68RC VERIFICATION TEST. AS68RC Transmission Verification Test

No

- Test Complete.
