U0431

U0431-IMPLAUSIBLE DATA RECEIVED FROM FCM (FDCM)

For a complete wiring diagram refer to Diagrams/Electrical. Electrical Diagrams


- When Monitored:

With the ignition on for 4 seconds, no CAN BUS circuit error condition present, no lost communication with FCM condition present, and no system undervoltage or overvoltage condition present.

- Set Condition:

The Final Drive Control Module is receiving no message or implausible data for Ambient Temperature from the FCM.








Diagnostic Test

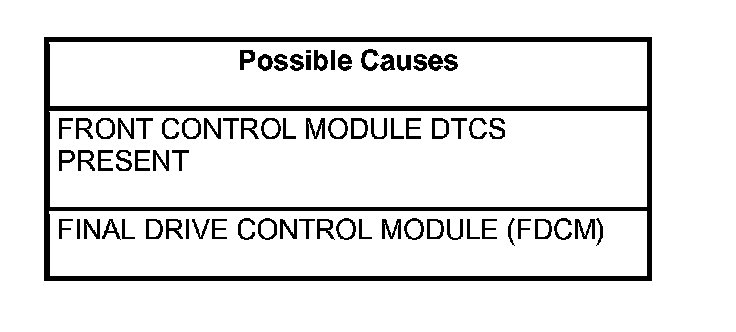

1. FRONT CONTROL MODULE DTCS PRESENT

Ignition on, engine not running.

With the scan tool, read DTCs in the Front Control Module.

Are there any DTCs present?

Yes

- Refer to the symptom list and perform the applicable diagnostic procedure.
- Perform FDCM VERIFICATION TEST. Verification Tests

No

- Replace the Final Drive Control Module.
- Perform FDCM VERIFICATION TEST. Verification Tests
