Engine Controls - Hard Start/Long Crank Times

NUMBER: 18-027-06

GROUP: Vehicle Performance

DATE: September 08, 2006

THE StarSCAN(R) FLASH FILES FOR THIS BULLETIN MUST BE RETRIEVED FROM THE INTERNET.

StarSCAN(R) UPDATE CD 6.05 WAS THE LAST CD TO CONTAIN FLASH FILES.

SUBJECT:
Flash: Intermittent Long Crank Times And Hard Starting

OVERVIEW:
This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM - Cummins) with new software.

MODELS:

2007 (DHID1) Ram Truck(Heavy Duty)

NOTE:
This bulletin applies to vehicles equipped with a 5.9L engine and manual transmission (sales codes ETH and DEG respectively) built prior to August 17, 2006 (MDH 0817XX).

SYMPTOM/CONDITION:

The vehicle operator may experience an intermittent long engine crank time prior to engine start. This condition may occur when the engine is cold or hot. The engine may crank over for up to 3 seconds before it starts to run.

DIAGNOSIS:

Using a Scan Tool (StarSCAN(R)) with the appropriate Diagnostic Procedures available in TechCONNECT, verify all engine systems are functioning as designed. If DTCs are present record them on the repair order and repair as necessary before proceeding further with this bulletin.

If the vehicle operator describes or experiences the Symptom/Condition, perform the Repair Procedure.

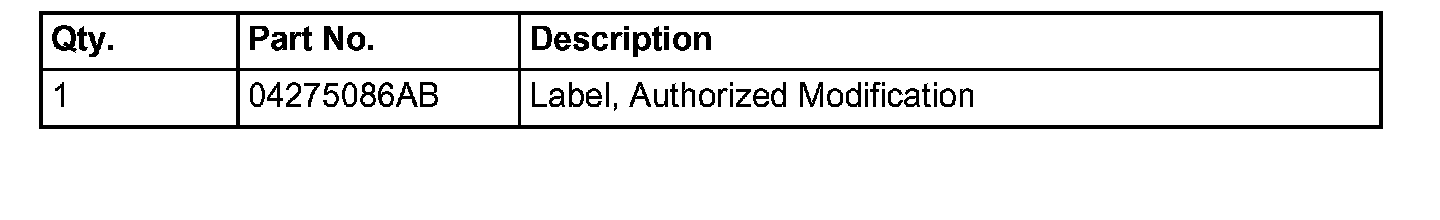

PARTS REQUIRED:

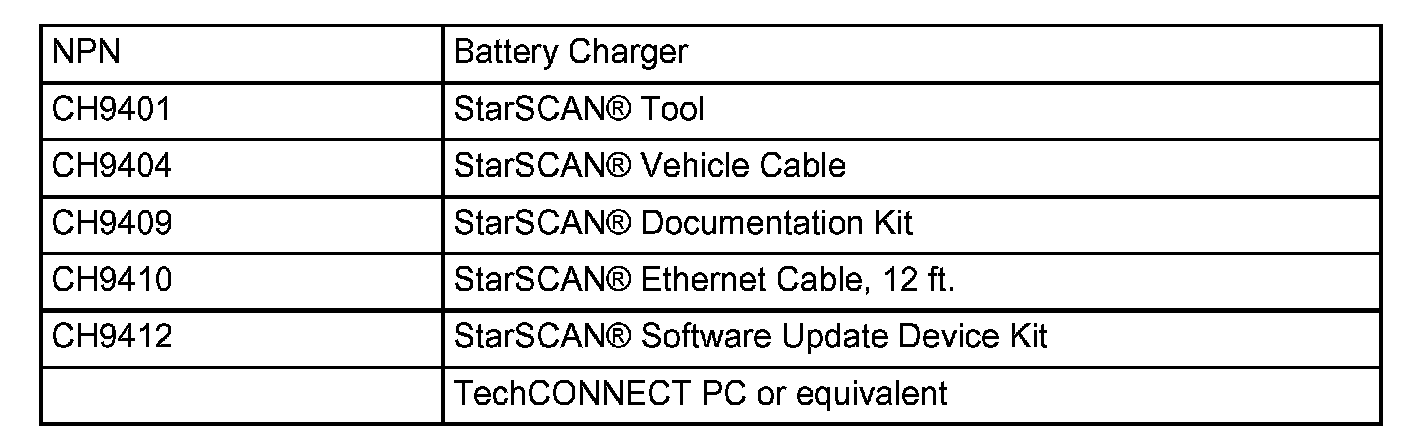

SPECIAL TOOLS / EQUIPMENT REQUIRED:

REPAIR PROCEDURE - USING StarSCAN TO RETRIEVE THE FLASH FILE FROM THE INTERNET:

NOTE:
Before performing this Repair Procedure, the operating software in the StarSCAN(R); must be programmed with software release level 7.02 or higher.

The software release level is visible in the blue header at the top of the StarSCAN(R) screen.

NOTE:
The StarSCAN(R) diagnostic scan tool fully supports Internet connectivity. However, to take advantage of this feature you must first configure the StarSCAN(R) for your dealership's network. Make sure the StarSCAN(R) is configured to the dealership's network before proceeding. For instruction on setting up your StarSCAN(R) for the dealer's network refer to either:

"DealerCONNECT > Service > StarSCAN and StarMOBILE tools > Online Documentation", or refer to the StarSCAN(R) Quick Start Networking Guide. The StarSCAN(R) Quick Start Networking Guide is also available on the website under the "Download Center".

NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.

1. Open the hood and install a battery charger. Using a voltmeter, verify that the charging rate provides 13.2 - 13.5 volts. Set the battery charger to continuous charge. Do not allow the charger to time out during the flash process. Remove the charger from the battery when the flash process is complete.

NOTE:
Do not allow the charging voltage to climb above 13.5 volts during the flash process.

2. Obtain the vehicle Personal Identification Number (PIN) / Security Key Information before continuing

a. The original selling invoice.

b. The DealerCONNECT system under the "Parts" tabs - select "Key Codes".

c. By contacting the District Manager.

3. Connect the CH9410 StarSCAN(R) ethernet cable to the StarSCAN(R) and the dealer's network drop.

4. Connect the CH9404 StarSCAN(R) vehicle cable to the StarSCAN(R) and the vehicle.

5. Power ON the StarSCAN(R).

6. Select "ECU View"

7. Touch the screen to highlight the appropriate ECU (PCM) in the list of modules.

8. Select "More Options"

9. Select "PCM Flash"

10. Record the part number at the top of the "Flash PCM" screen for later reference.

11. Select "Browse for New File". Follow the on screen instructions.

12. Highlight the calibration then select "Download to Scantool".

13. Select "Close" after the download is complete, then select "Back".

14. Highlight the listed calibration.

15. Select "Update Controller". Follow on screen instructions.

16. When the PCM update is complete, select "OK".

17. Verify the part number at the top of the "Flash PCM" screen has updated to the new part number.

18. The Wireless Control Module (WCM), also called SKREEM, requires update with the Secret Key information obtained earlier. From the StarScan(R) Home Menu:

a. Select "ECU View".

b. Select "WCM".

c. Select "Miscellaneous Functions".

d. Select "PCM Replace".

e. Follow the on-screen prompts to complete the updating process.

19. Once the WCM has been updated, clear all DTC's.

NOTE:
Due to the PCM programming procedure, a DTC may be set in other modules (TCM, BCM, MIC, SKREEM, etc.) within the vehicle, if so equipped. Some DTC's may cause the MIL to illuminate. From the "Home" screen select "System View". Then select "All DTCs". Press "Clear All Stored DTCs" if there are any DTCs shown on the list.

NOTE:
The following step is required by law when reprogramming a PCM and/or TCM.

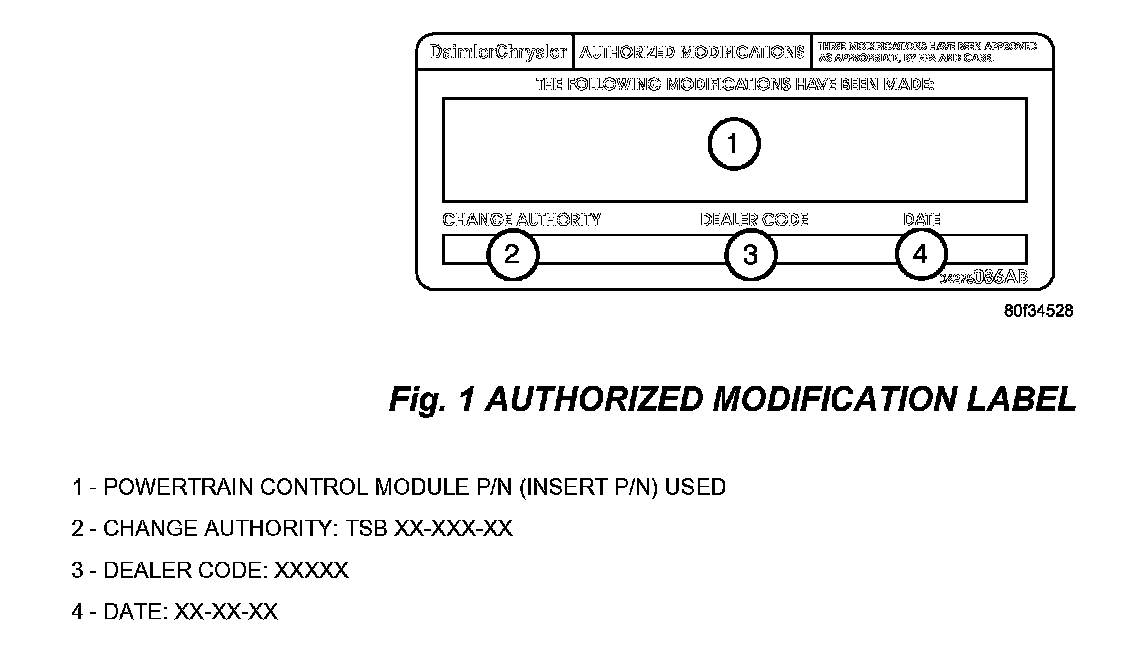

20. Type the necessary information on the "Authorized Modification Label" p/n 04275086AB and attach near the VECI label (Fig. 1).

Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.

POLICY:
Reimbursable within the provisions of the warranty.

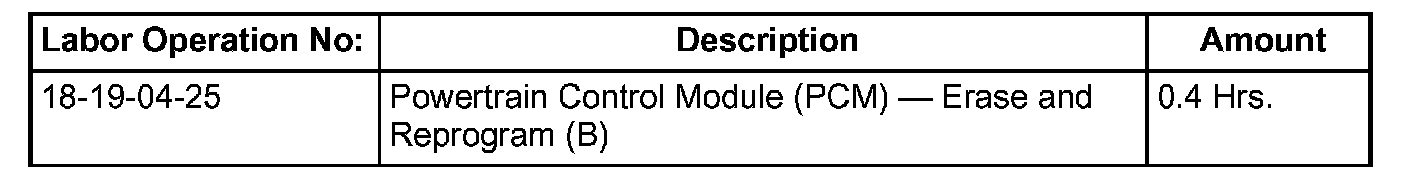

TIME ALLOWANCE:





FAILURE CODE:

Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
