Windshield Washer Pump: Diagrams

Component ID: 237

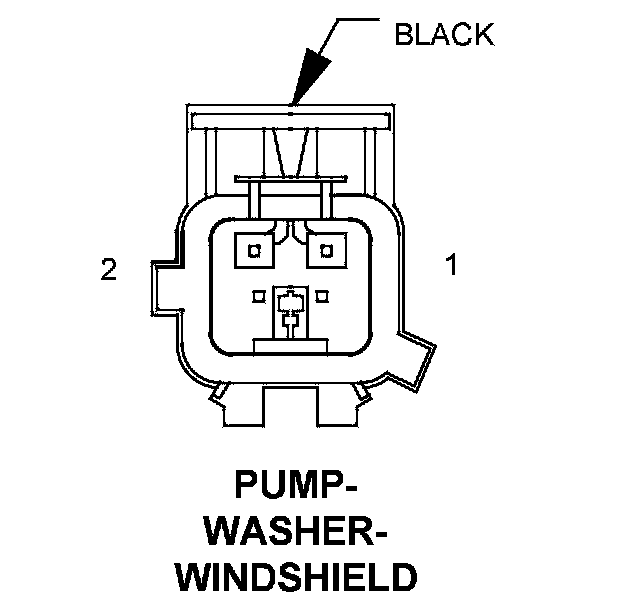

Component : PUMP-WASHER-WINDSHIELD

Connector:
Name : PUMP-WASHER-WINDSHIELD
Color : BLACK
# of pins : 2




Pin Description Circuit
1 GROUND Z945 20BK
2 WASHER PUMP MOTOR CONTROL W10 20BR

Component Location - 29
