Service Procedure

1. Open the front doors.





2. Partially remove the door weather strip from the right side "A" pillar (Figure 1).

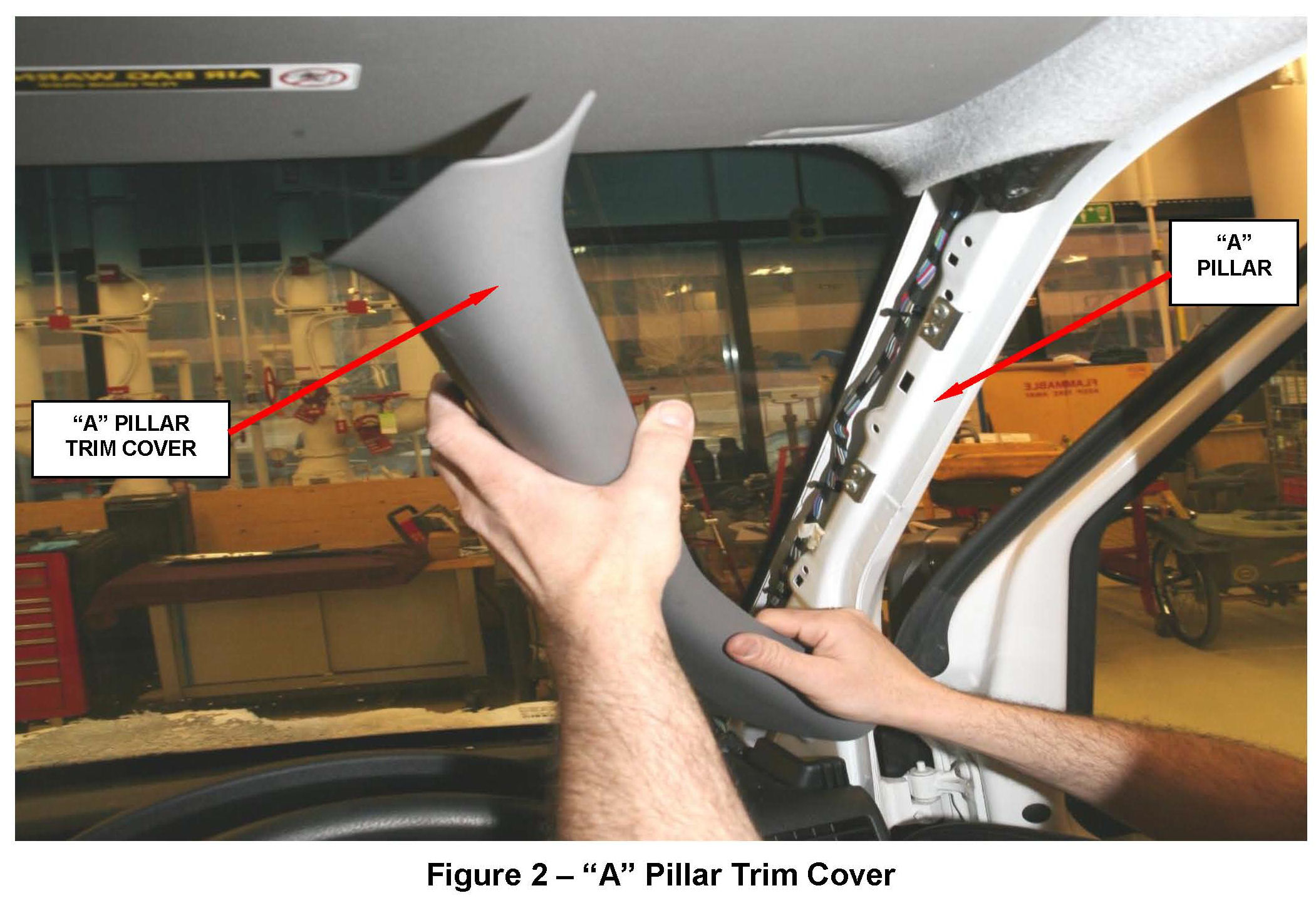

3. Unsnap the "A" pillar trim cover from the "A" pillar (Figure 2).

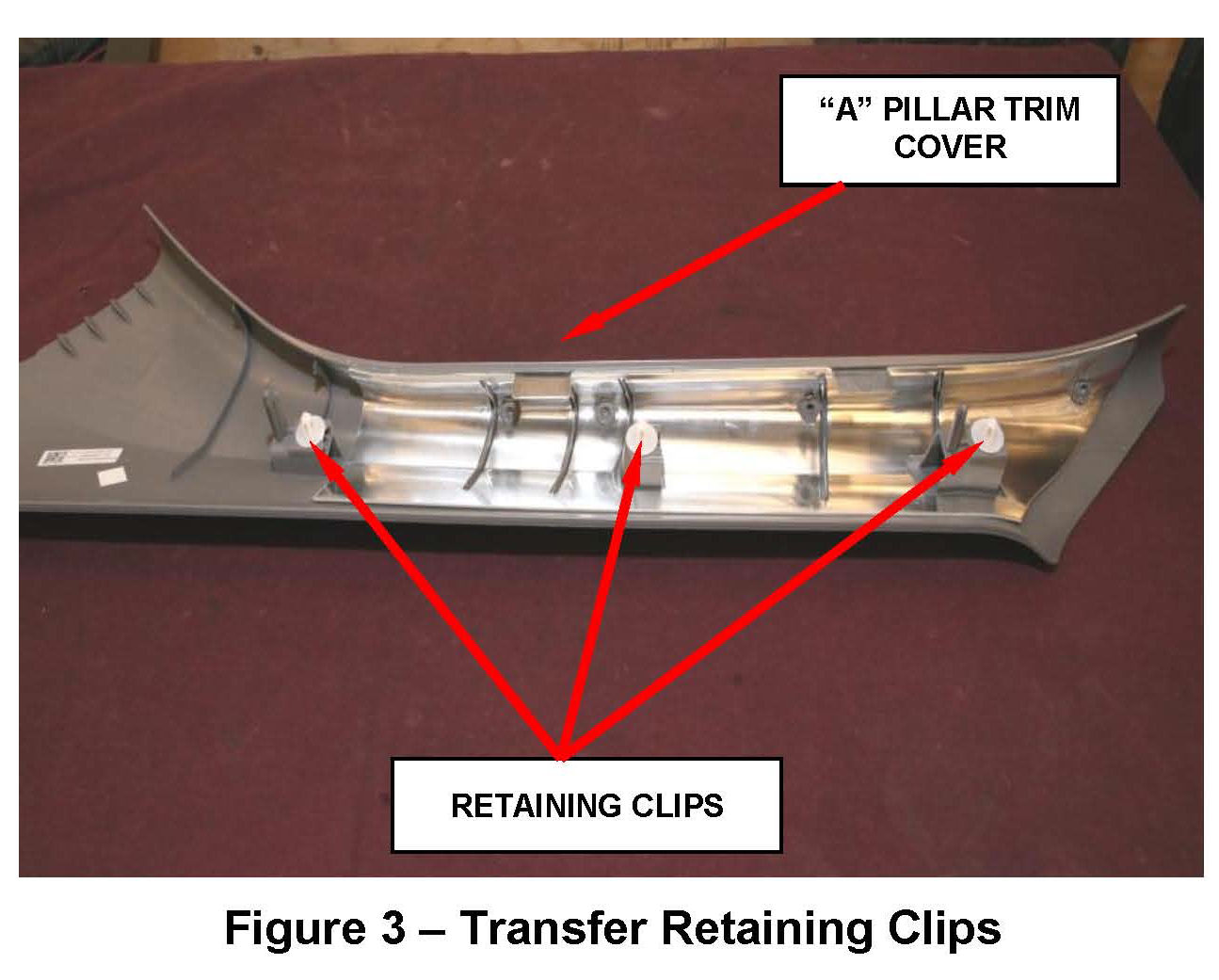

4. Transfer the three retaining clips from the old "A" pillar trim cover to the new "A" pillar trim cover.

5. Install the new "A" pillar trim cover onto the "A" pillar.

6. Install the partially removed weather strip.

7. Repeat Steps 2 through 6 on the left "A" pillar trim cover.
