Cylinder Head Bolt Inspection

CYLINDER HEAD BOLT INSPECTION

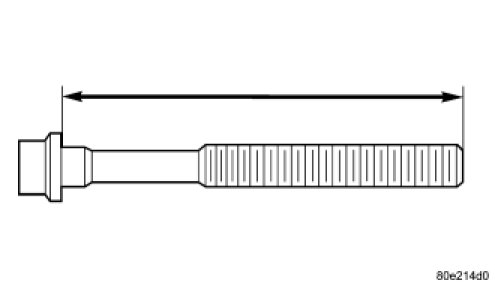

1. Measure cylinder head bolts between points shown.

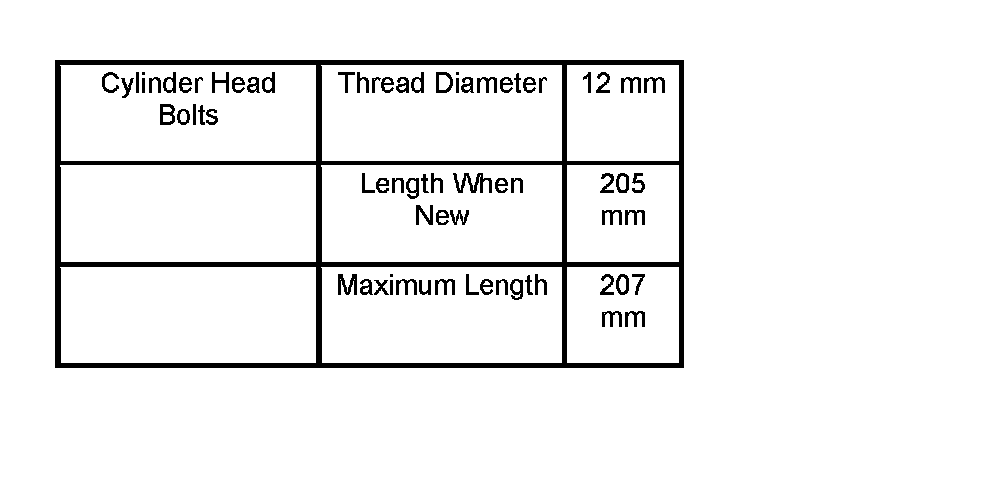

2. If the cylinder head bolt length is greater than the maximum allowable measurement, replace the cylinder head bolts.
