Canada - Campaign - H04 A/T/Roof Vent Relay
BulletinH04
Issue Date
2008-07-15
IMPORTANT
DEALER SERVICE INSTRUCTIONS

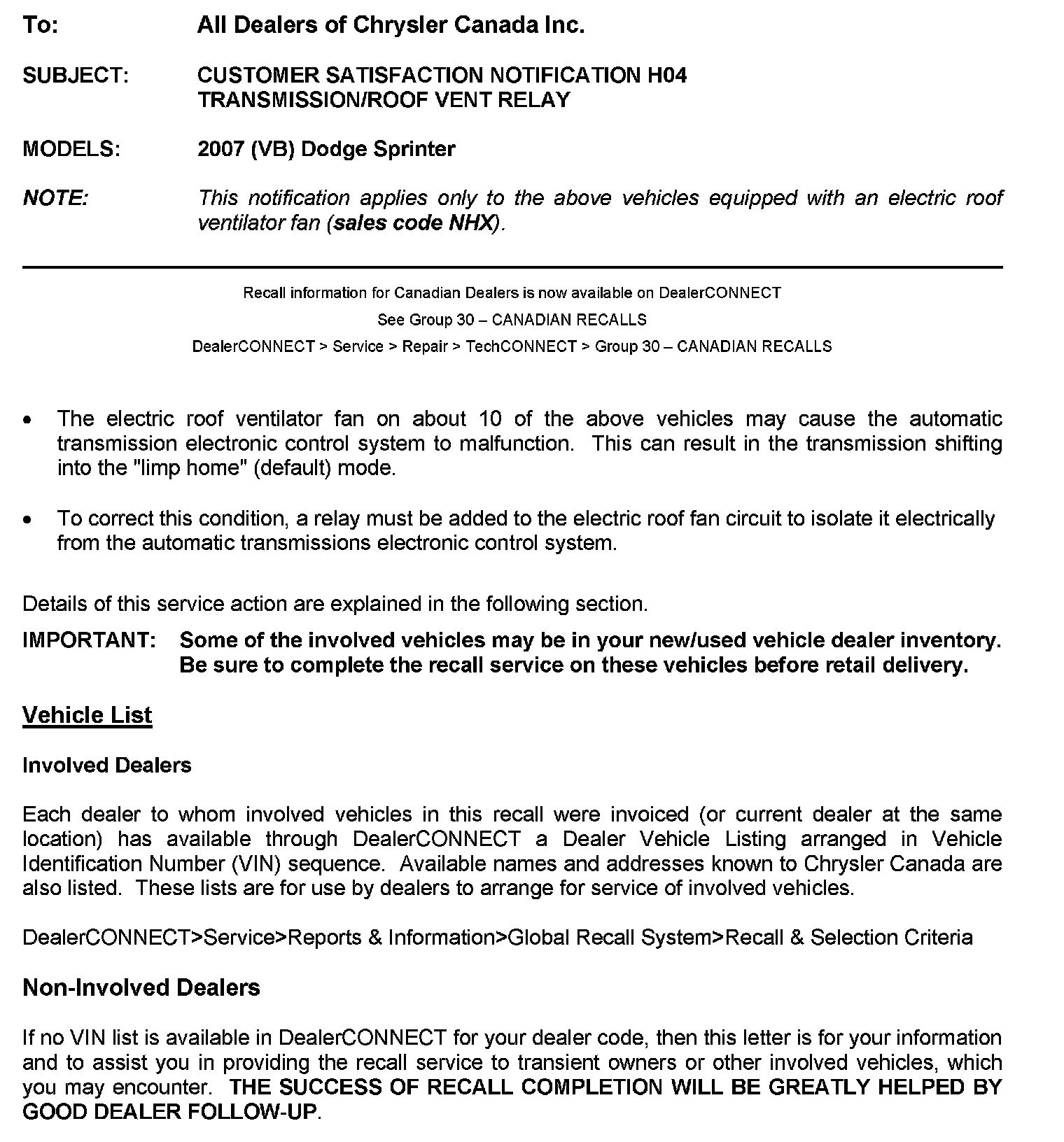

CUSTOMER SATISFACTION NOTIFICATION H04 TRANSMISSION/ROOF VENT RELAY
MODELS:
2007 (VB) Dodge Sprinter
NOTE:
This notification applies only to the above vehicles equipped with an electric roof ventilator fan (sales code NHX).
^ The electric roof ventilator fan on about 10 of the above vehicles may cause the automatic transmission electronic control system to malfunction. This can result in the transmission shifting into the "limp home" (default) mode.

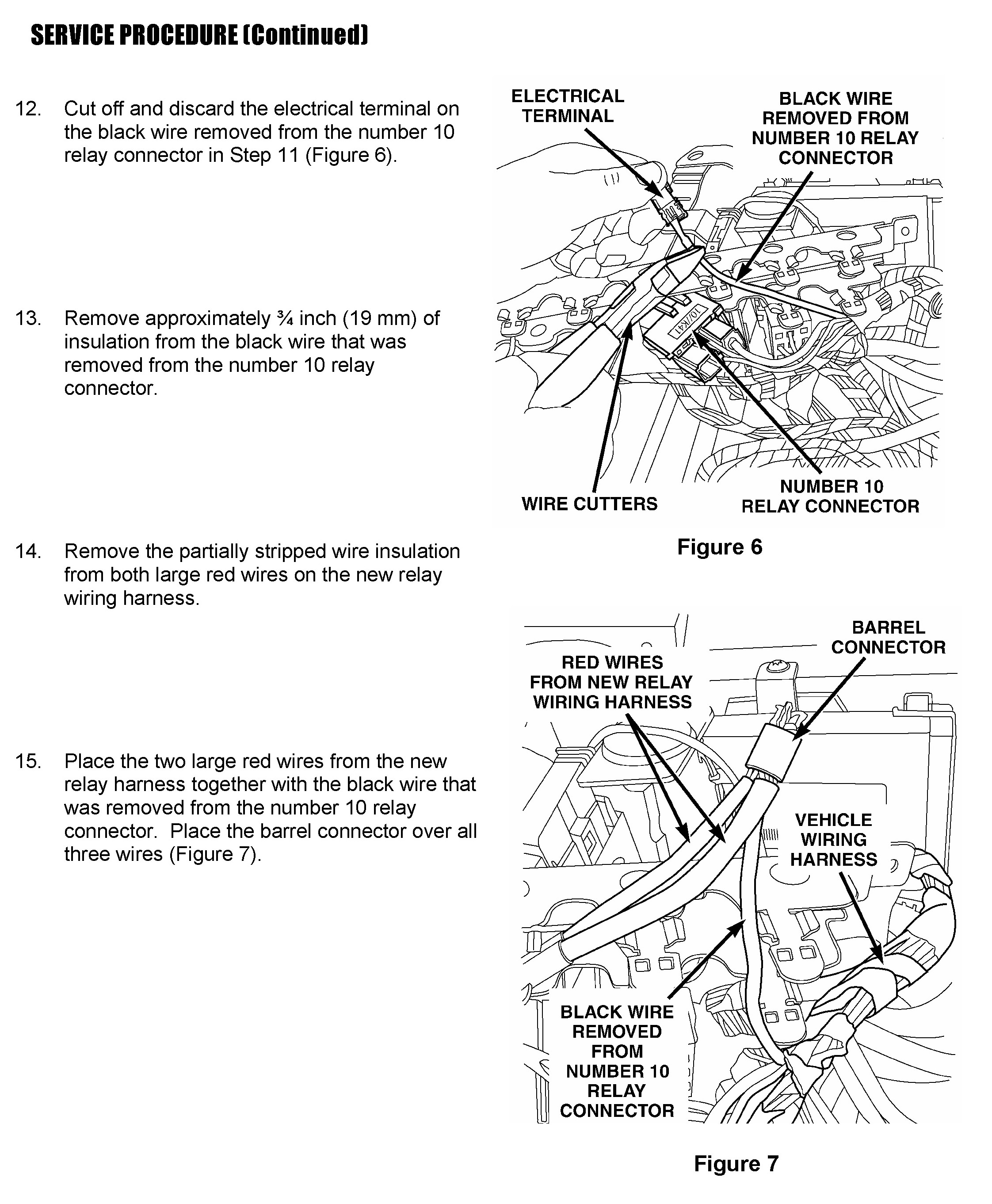

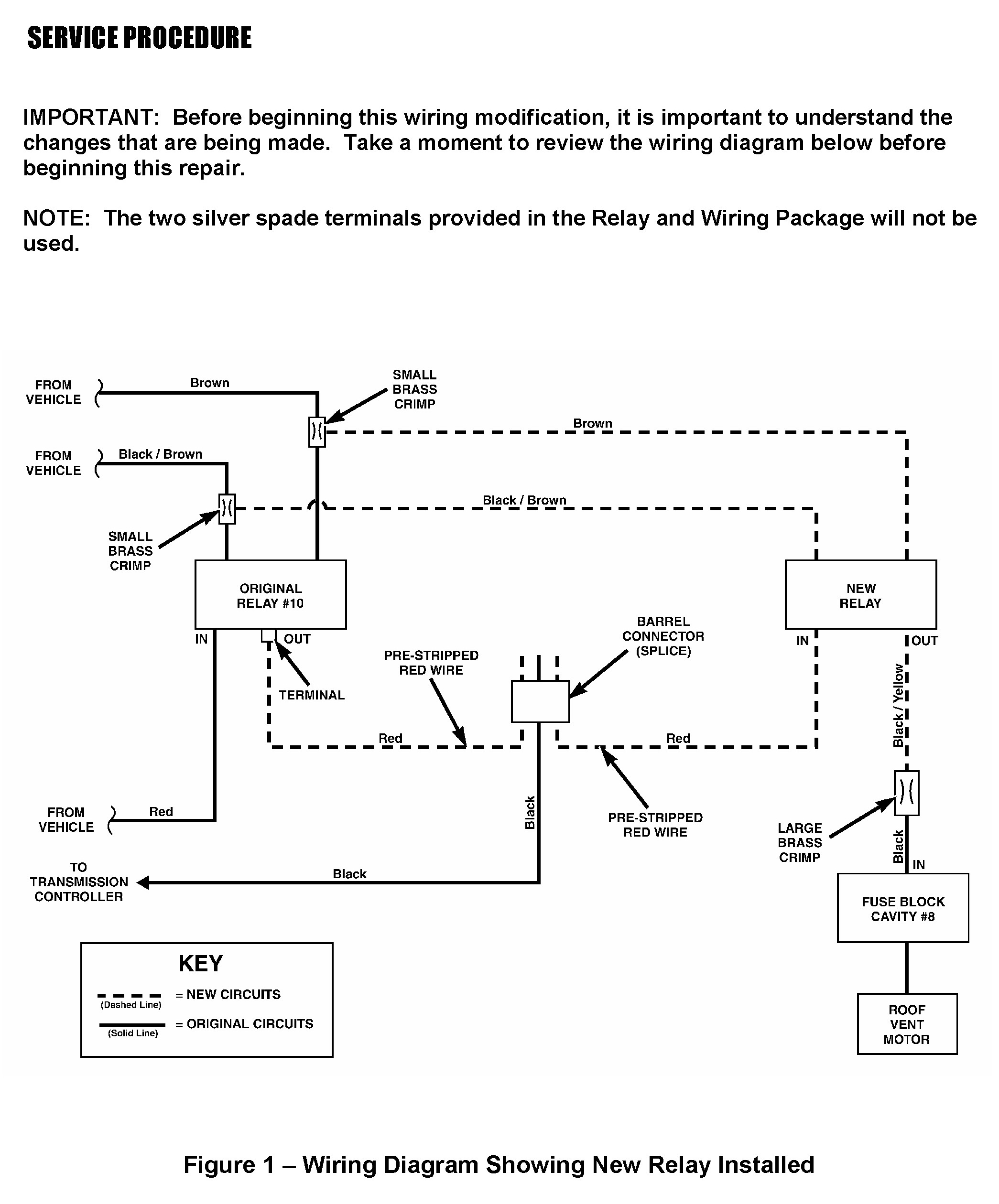

^ To correct this condition, a relay must be added to the electric roof fan circuit to isolate it electrically from the automatic transmissions electronic control system.
Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.
This Canadian Recall Notification can also be found in DealerCONNECT - See below:
DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS
The V.I.N. range for vehicles involved in this campaign is as follows:
WD0BE845X75168635 - WD0BE745375214901

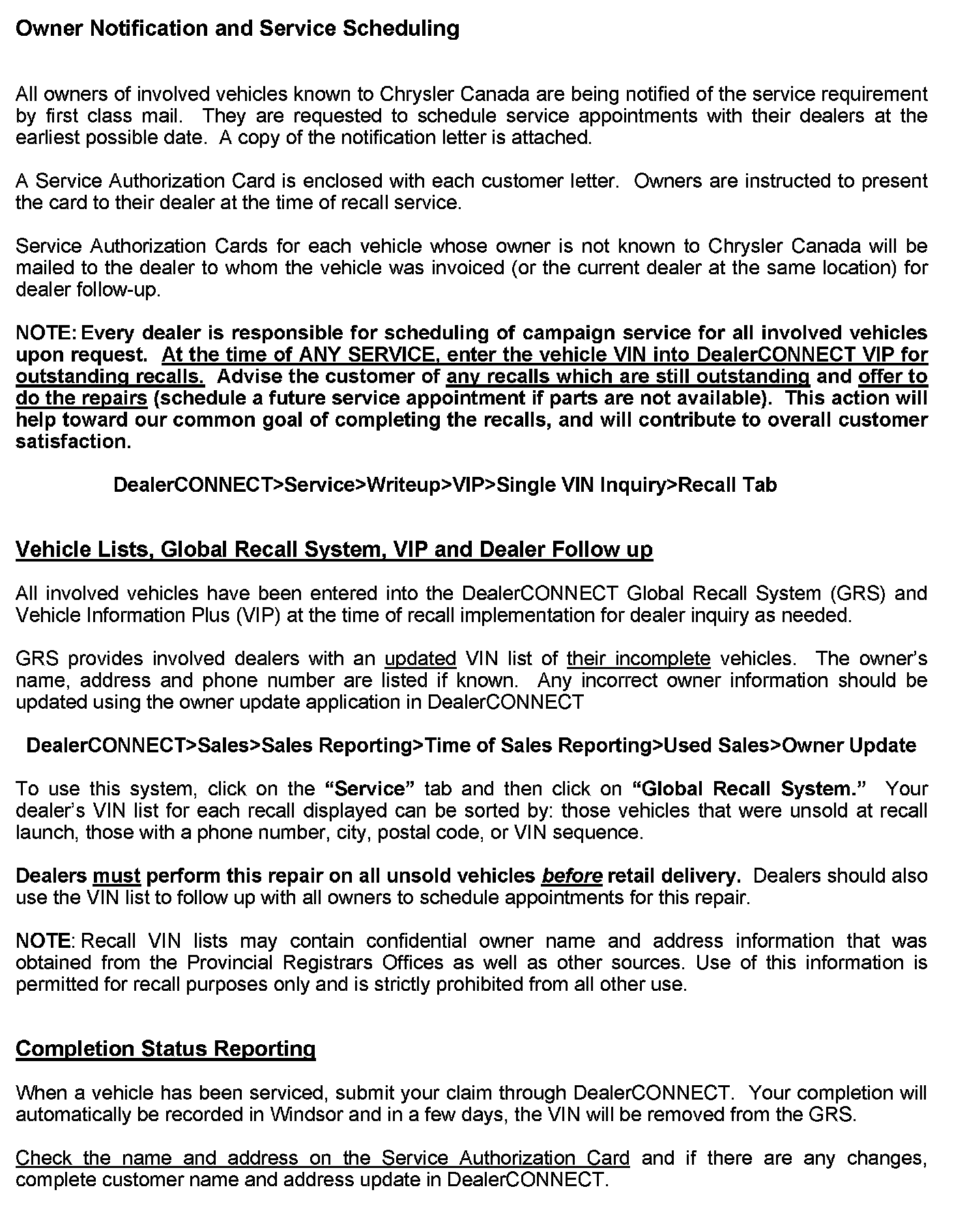

DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)
GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.
To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.
Dealer Information

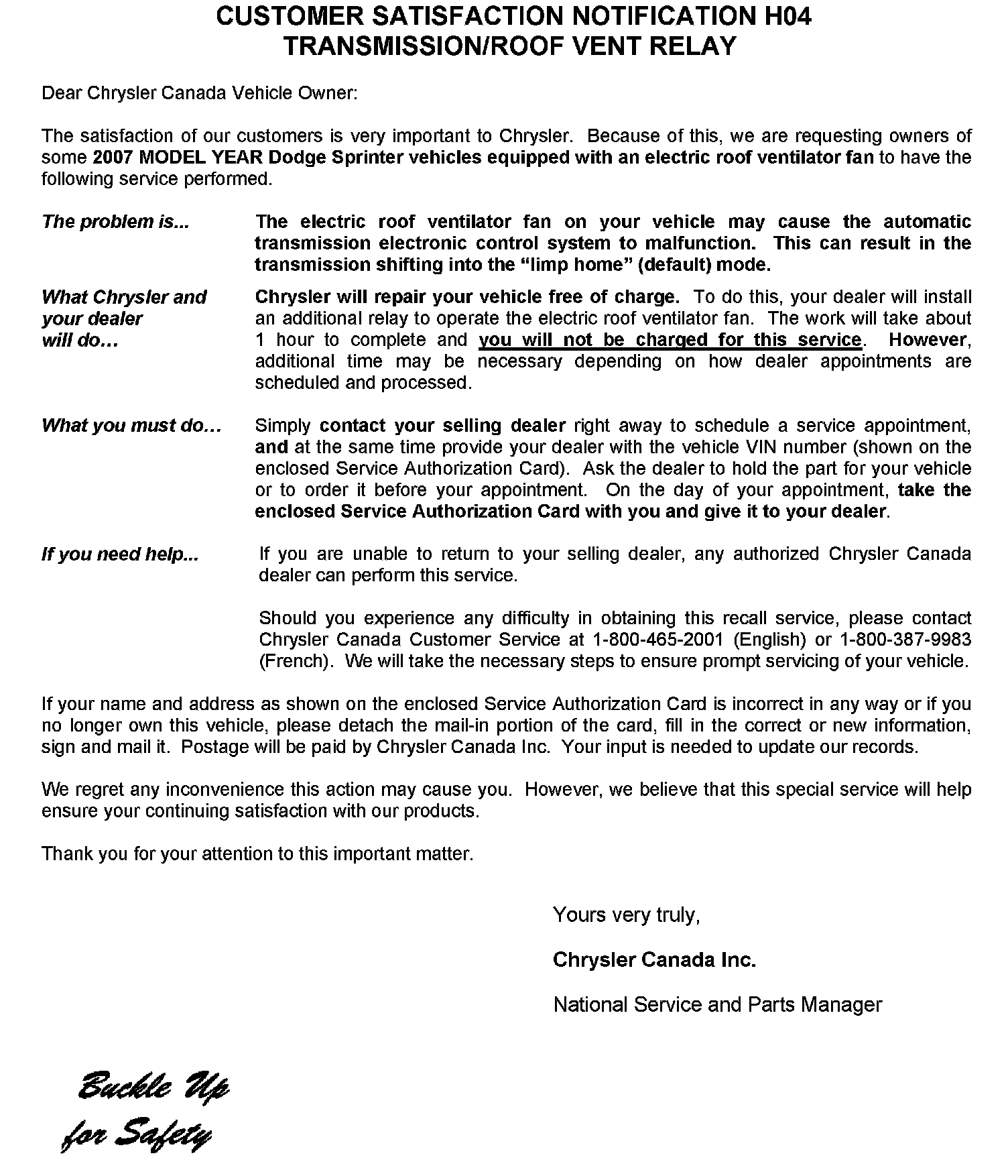

Owner Letter
