Mirror-Inside Rearview

Component ID: 179
Component : MIRROR-INSIDE REARVIEW

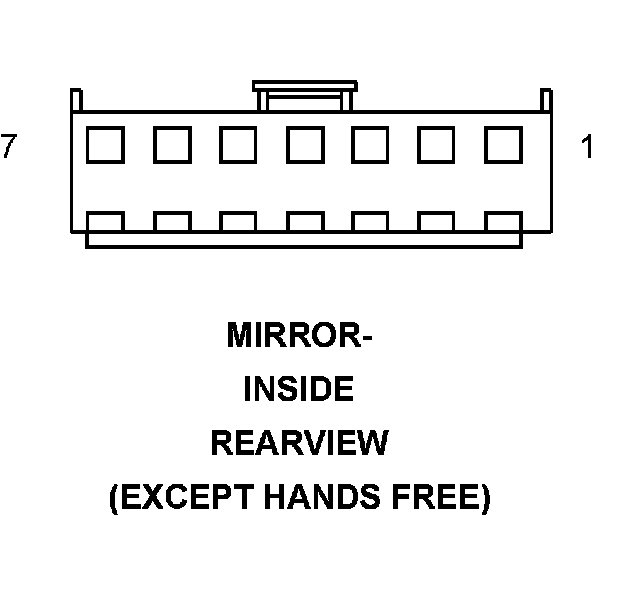

Connector:
Name : MIRROR-INSIDE REARVIEW
Color :
# of pins : 7
Qualifier : (EXCEPT HANDS FREE)




Pin Circuit Description
1 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
2 Z919 20BK/DG GROUND
3 L1 18BK/LB BACKUP LAMP RELAY OUTPUT
4 - -
5 - -
6 - -
7 - -

Component Location - 34




Component Location - 35






Connector:
Name : MIRROR-INSIDE REARVIEW
Color : GRAY
# of pins : 16
Qualifier : (HANDS FREE)




Pin Circuit Description
1 X712 20DG/LB MICROPHONE 1 IN (+)
2 X792 20LB/DG MICROPHONE IN (-)
3 X722 20LB/DG MICROPHONE 2 IN (+)
4 - -
5 - -
6 - -
7 - -
8 Z919 20BK/RD GROUND
9 L1 18BK/LB BACKUP LAMP RELAY OUTPUT
10 X835 20BK/YL SENSOR GROUND
11 - -
12 - -
13 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
14 - -
15 X793 20BK/WT MICROPHONE FEED
16 - -

Component Location - 34




Component Location - 35
