Airbag-Driver Squib 2

Component ID: 5

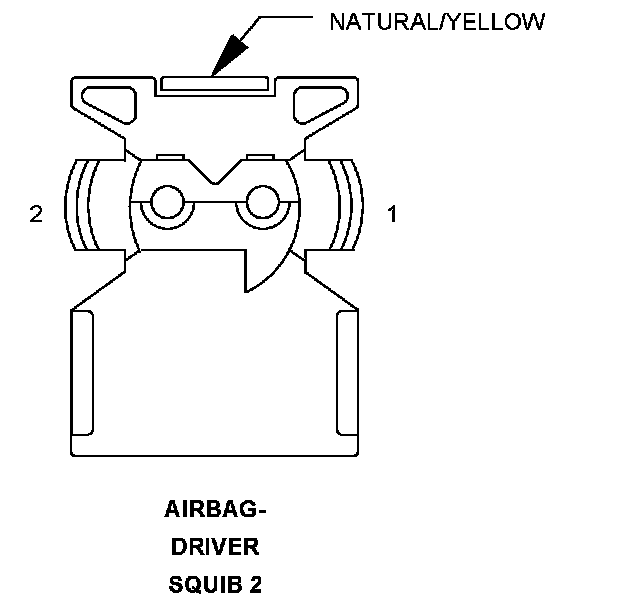

Component : AIRBAG-DRIVER SQUIB 2

Connector:
Name : AIRBAG-DRIVER SQUIB 2
Color : NATURAL/YELLOW
# of pins : 2




Pin Circuit Description
1 R63 20RD DRIVER SQUIB 2 LINE 1
2 R61 20YL DRIVER SQUIB 2 LINE 2
