Airbag-Passenger Squib 2

Component ID: 7
Component : AIRBAG-PASSENGER SQUIB 2

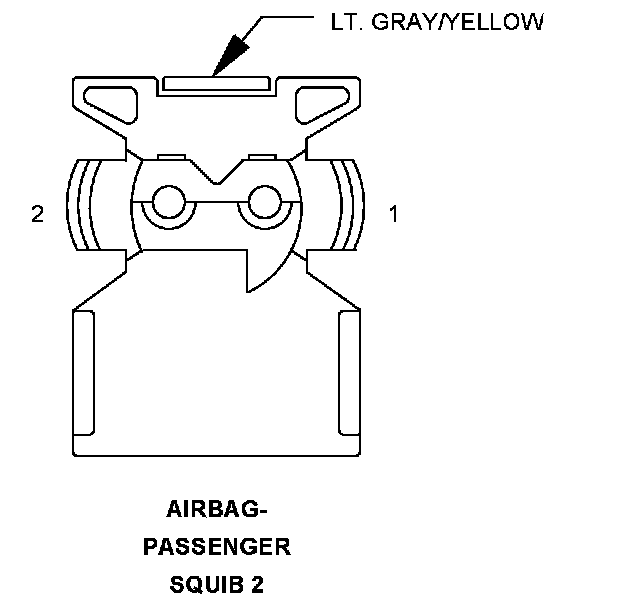

Connector:
Name : AIRBAG-PASSENGER SQUIB 2
Color : LT. GRAY/YELLOW
# of pins : 2




Pin Circuit Description
1 R62 20LB/VT PASSENGER SQUIB 2 LINE 2
2 R64 20LB/WT PASSENGER SQUIB 2 LINE 1

Component Location - 42




Component Location - 47
