Alarm Horn

Component ID: 408
Component : SIREN

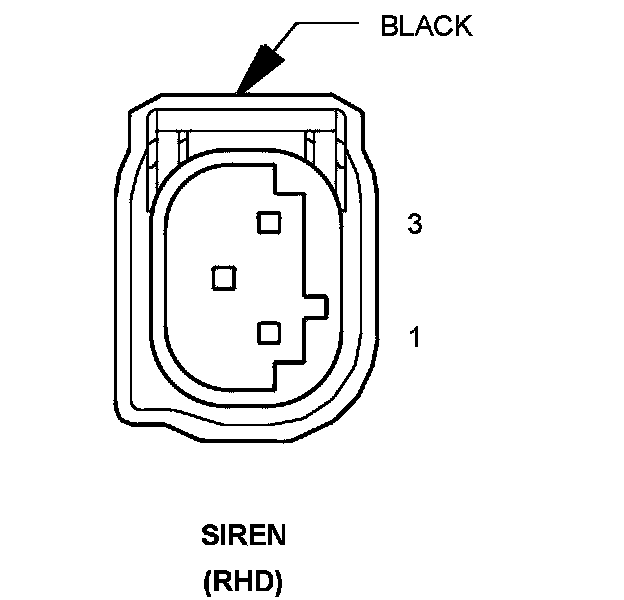

Connector:
Name : SIREN
Color : BLACK
# of pins : 3
Gender : FEMALE




Pin Circuit Description
1 A412 18RD FUSED B(+)
2 Z908 18BK/LG GROUND
3 D96 18WT/LB SIREN SIGNAL CONTROL

Component Location - 3
