Alternator

Component ID: 136
Component : GENERATOR

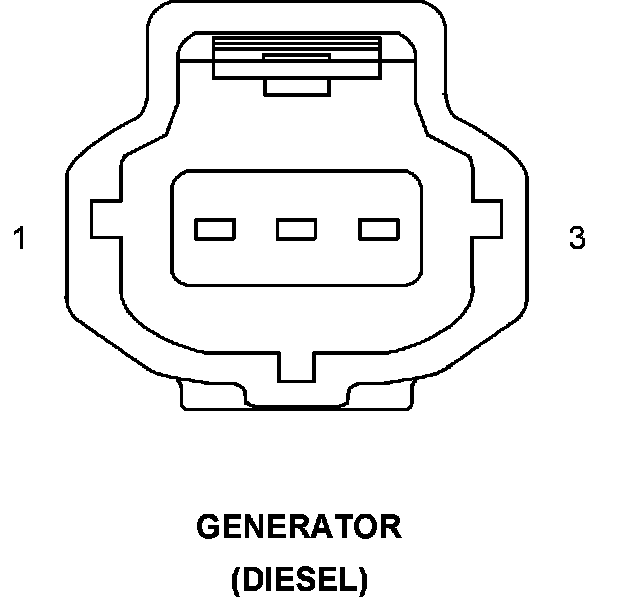

Connector:
Name : GENERATOR
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 - -
2 D509 20WT/OR ECM LIN BUS
3 - -

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 16




Component Location - 24




Component Location - 18






Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K125 16BR/DG GEN FIELD CONTROL
Pin Circuit Description
1 K125 18BR/DG GEN FIELD CONTROL
2 A803 18GY/RD GEN SENSE

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 16




Component Location - 24




Component Location - 18






Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A801 4RD/GY FUSED B(+)

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 16




Component Location - 24




Component Location - 18






Connector:

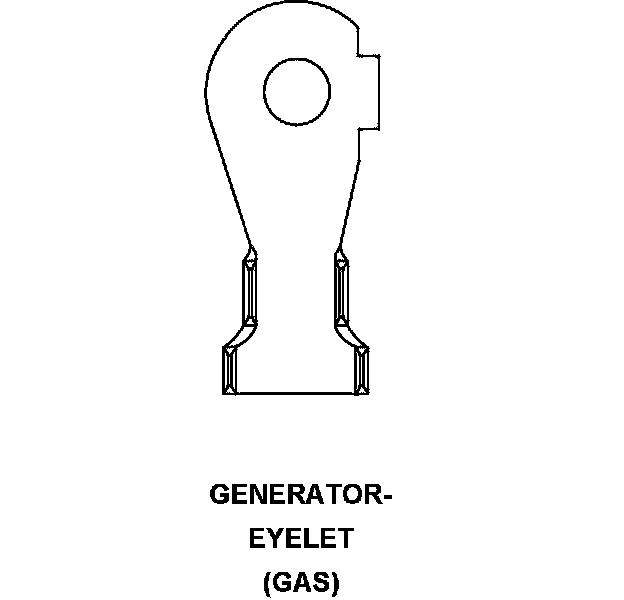

Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (GAS)




Pin Circuit Description
1 A801 4RD/GY FUSED B(+)

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 16




Component Location - 24




Component Location - 18
