Ambient Temperature Sensor / Switch HVAC

Component ID: 357
Component : SENSOR-AMBIENT AIR TEMPERATURE

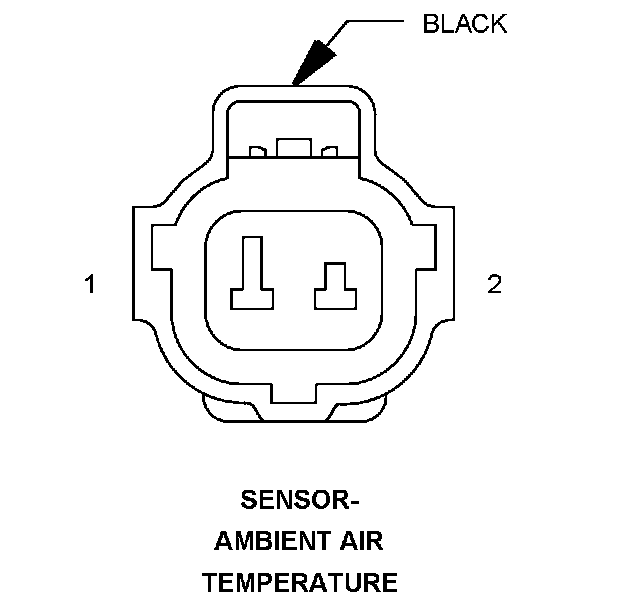

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 G31 18VT/LG AAT SIGNAL
2 G931 18VT/BR AAT RETURN

Component Location - 1
