Antenna-Radio

Component ID: 12
Component : ANTENNA-RADIO

Connector:

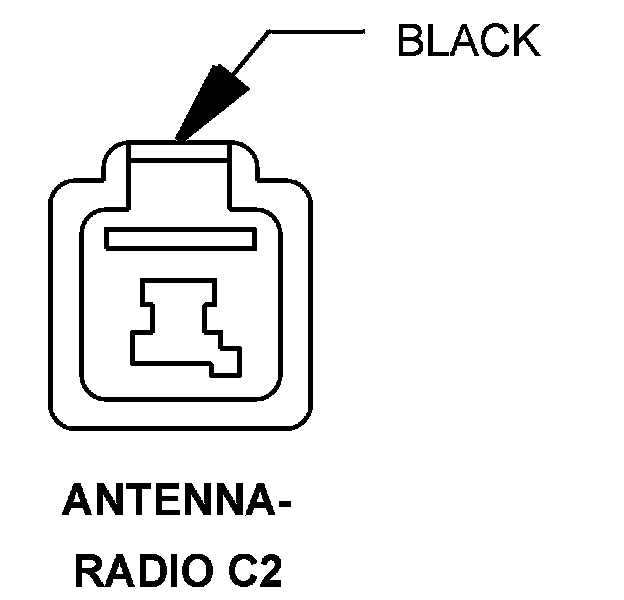

Name : ANTENNA-RADIO C2
Color : BLACK
# of pins : 1




Pin Circuit Description
1 X62 20GY/OR AMPLIFIED ANTENNA FEED

Component Location - 62




Component Location - 64
