Auxiliary Input / Output Jack, Entertainment System

Component ID: 220

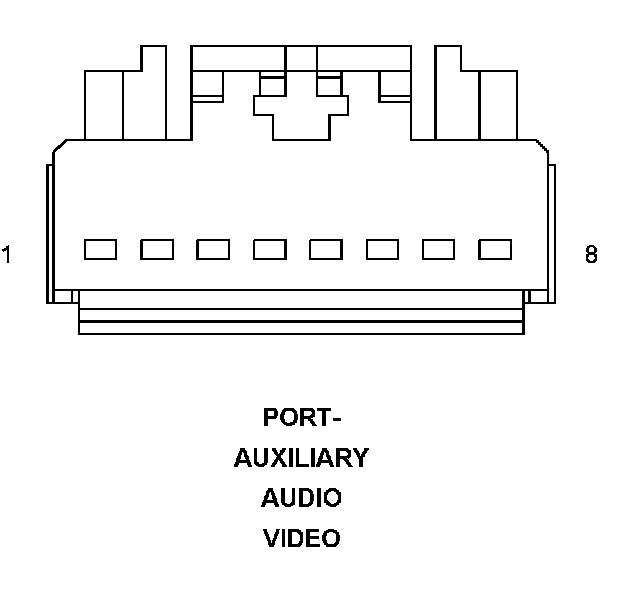

Component : PORT-AUXILIARY AUDIO VIDEO

Connector:
Name : PORT-AUXILIARY AUDIO VIDEO
Color :
# of pins : 10




Pin Circuit Description
1 X521 20GY/LB AUX AUDIO LEFT SIGNAL NO. 2
2 X522 20GY/DB AUX AUDIO RIGHT SIGNAL NO. 2
3 X519 20DG/VT AUX AUDIO COMMON NO. 2
4 - -
5 - -
6 X531 20GY/LB AUX VIDEO SIGNAL NO. 2
7 X532 18NA AUX VIDEO COMMON NO. 2
8 X533 20DG/OR AUX VIDEO SHIELD NO. 2

Component Location - 50




Component Location - 53
