Sensor-Brake Fluid Level

Component ID: 358

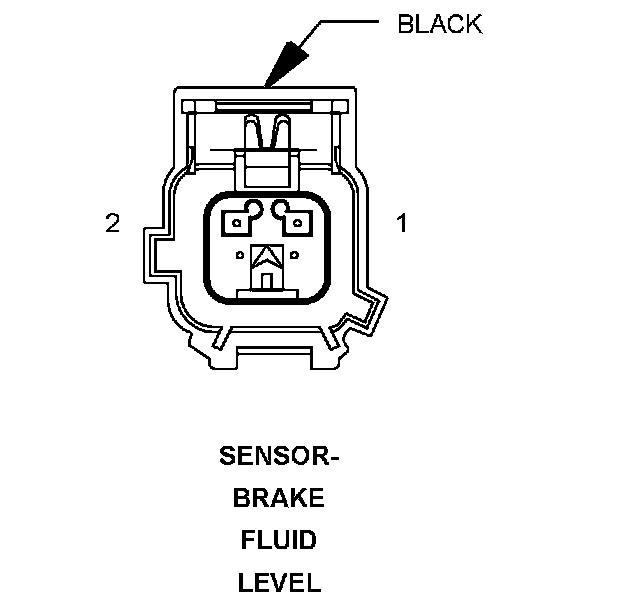

Component : SENSOR-BRAKE FLUID LEVEL

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B20 20DG/OR BRAKE FLUID LEVEL SIGNAL
2 P37 20LG/TN SWITCH RETURN
2 K91 18DB/YL SENSOR GROUND

Component Location - 26




Component Location - 32




Component Location - 28
