Brake Lamp Relay

Component ID: 227
Component : RELAY-BRAKE LAMP ACTIVATION

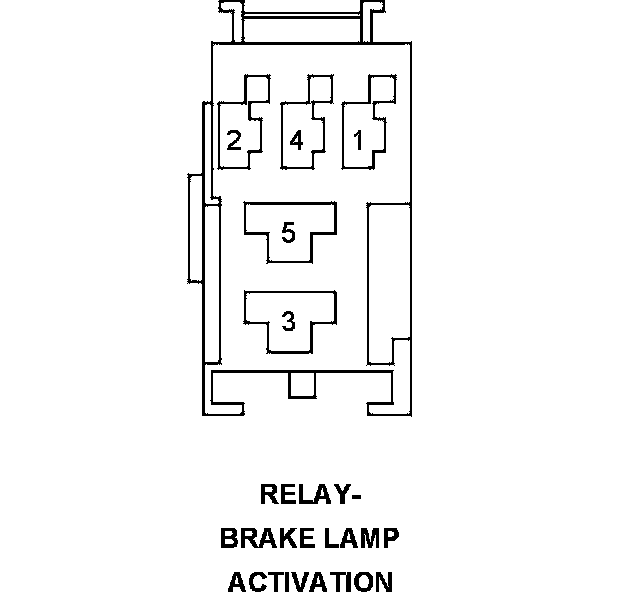

Connector:
Name : RELAY-BRAKE LAMP ACTIVATION
Color :
# of pins : 5




Pin Circuit Description
1 B401 18DG/DB BRAKE LAMP ACTIVATION RELAY CONTROL
2 F941 18PK/LG FUSED RUN/START RELAY OUTPUT
3 A108 18LG/RD FUSED B(+)
4
5 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
