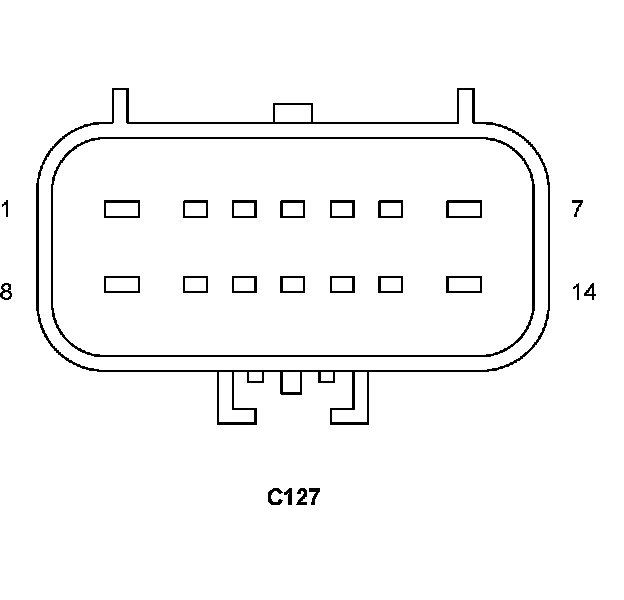

C127

Component ID: 28
Component : C127

Connector:
Name : C127
Color :
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 T13 18DG/VT SENSOR GROUND
2 T54 18VT TRANSMISSION TEMPERATURE SIGNAL
3 T60 18YL/BK OD CONTROL
3 T60 18YL/GY OD CONTROL
4 T70 18YL INPUT SPEED 1 (N2) SIGNAL
5 T71 18YL/PK INPUT SPEED 2 (N3) SIGNAL
5 T71 18YL/OR INPUT SPEED 2 (N3) SIGNAL
6 T72 18YL/DB 5 VOLT SUPPLY
7 T73 18YL/GY 2-3 SOLENOID CONTROL
8 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
8 T16 14YL/OR TRANSMISSION CONTROL OUTPUT
9 T74 18YL/LG 2-3 CONTROL
10 T75 18YL/LB TCC SOLENOID CONTROL
11 T76 18YL/TN MODULATION PRESSURE SOLENOID CONTROL
12 T77 18YL/BR SHIFT PRESSURE CONTROL
13 T78 18LB SENSOR GROUND
13 T78 18YL SENSOR GROUND
14 F941 20PK/LG FUSED RUN/START RELAY OUTPUT

Component Location - 25




Component Location - 33




Component Location - 17






Connector:
Name : C127
Color :
# of pins : 14
Gender : MALE




Pin Circuit Description
1 T13 18DG/VT SENSOR GROUND
2 T54 18VT TRANSMISSION TEMPERATURE SIGNAL
3 T60 18YL/GY OD CONTROL
4 T70 18YL INPUT SPEED 1 (N2) SIGNAL
5 T71 18YL/OR INPUT SPEED 2 (N3) SIGNAL
6 T72 18YL/DB 5 VOLT SUPPLY
7 T73 18YL/GY 2-3 SOLENOID CONTROL
8 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
9 T74 18YL/LG 2-3 CONTROL
10 T75 18YL/LB TCC SOLENOID CONTROL
11 T76 18YL/TN MODULATION PRESSURE SOLENOID CONTROL
12 T77 18YL/BR SHIFT PRESSURE CONTROL
13 T78 18YL SENSOR GROUND
14 F941 20PK/LG FUSED RUN/START RELAY OUTPUT

Component Location - 25




Component Location - 33




Component Location - 17
