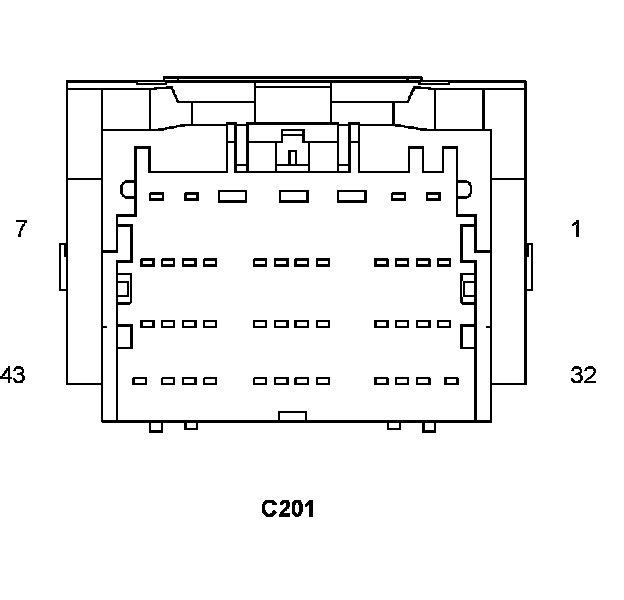

C201
Component ID: 29
Component : C201
Connector:
Name : C201
Color :
# of pins : 43
Gender : FEMALE
Pin Circuit Description
1 X712 22DG/LB MICROPHONE 1 IN (+)
2 X722 22LB/DG MICROPHONE 2 IN (+)
3 A116 14YL/RD FUSED B(+) (I.O.D.)
4 - -
5 C7 10DB BLOWER MOTOR SUPPLY
6 - -
7 L91 18WT/DB HAZARD SWITCH SENSE
8 X792 22LB/DG MICROPHONE IN (-)
9 X795 22DG COMMON AUDIO OUTPUT
10 X835 22OR/GY SENSOR GROUND
11 X793 22DG/YL MICROPHONE FEED
12 M27 20YL/LB READING/RAIL LAMPS DRIVER
13 M24 20YL/WT COURTESY LAMPS DRIVER
14 A901 18RD FUSED B(+)
15 A417 20RD FUSED B (+)
16 C83 22DB/LG
17 C830 22DB/YL
17 D21 20WT/BR SCI TRANSMIT
18 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
19 A909 18RD FUSED B(+)
20 A106 20LB/RD FUSED B(+)
21 V71 18VT/OR S/C SIGNAL 1
22 V72 18OR/VT S/C SIGNAL 2
23 V937 22VT/BR S/C RETURN
24 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
25 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
26 G38 20GY GARAGE DOOR OPENER ENABLE
27 F1 20PK/WT IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
28 B15 20DG/WT BRAKE SIGNAL 1
29 B16 20LB/DG BRAKE SIGNAL 2
30 B25 20DG/WT PARK BRAKE SWITCH SENSE
31 F921 18PK/YL FUSED RUN RELAY OUTPUT
32 A108 18LG/RD FUSED B(+)
33 P806 20LG/WT INVERTER STATUS INDICATOR DRIVER
33 D21 20WT/BR SCI TRANSMIT
34 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
35 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR SUPPLY
36 D64 20WT/LB CAN C BUS (-)
37 D65 20WT/BK CAN C BUS (+)
38 D71 20WT/DB DIAGNOSTIC CAN C (-)
39 D72 20WT/LB DIAGNOSTIC CAN C (+)
40 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
41 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
42 D506 20WT/DG LIN BUS
43 F941 18PK/LG FUSED RUN/START RELAY OUTPUT

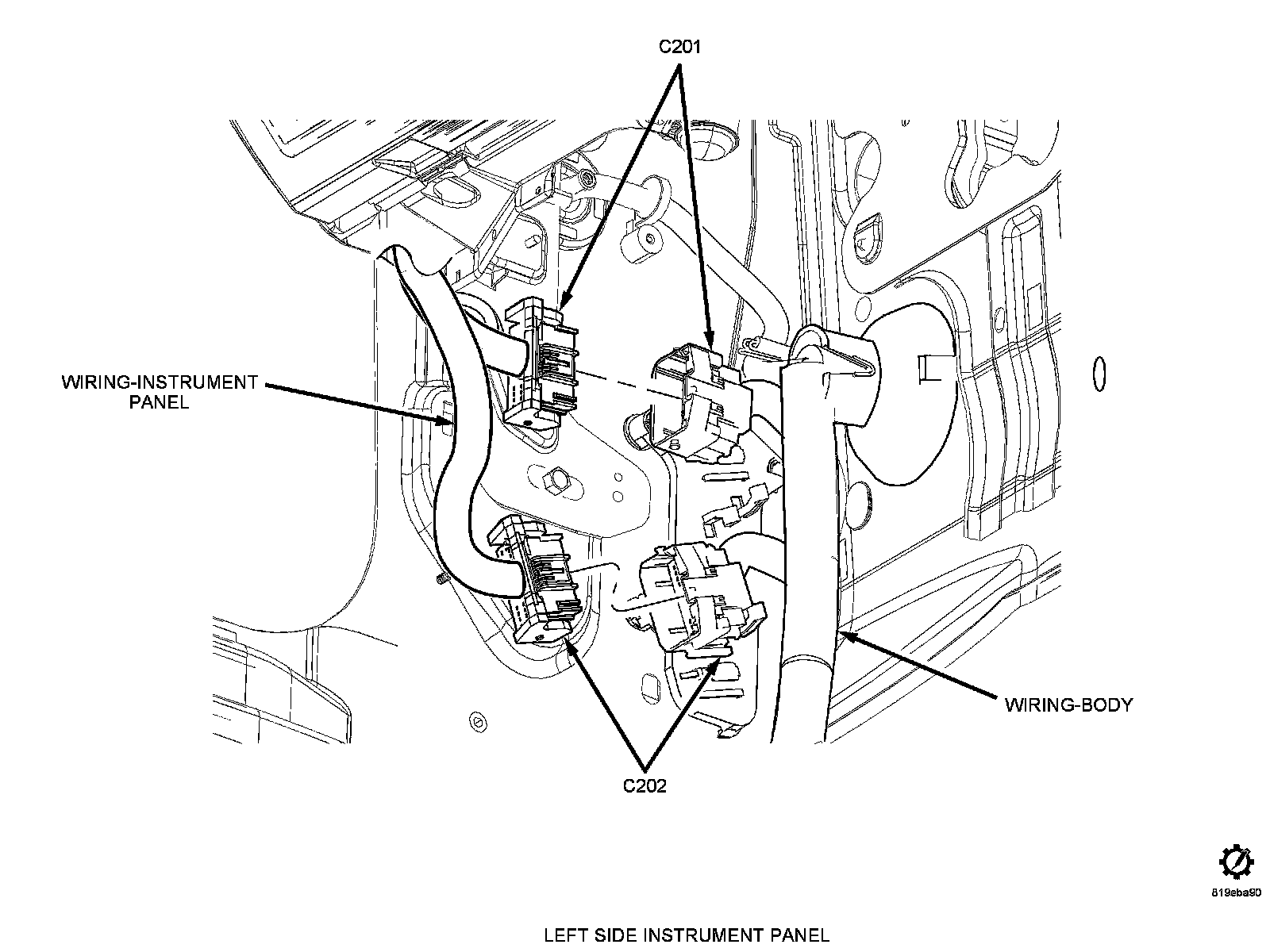

Component Location - 38
Component Location - 46
Component Location - 37
Component Location - 41
Connector:
Name : C201
Color :
# of pins : 43
Gender : MALE
Pin Circuit Description
1 X704 22DG/YL RIGHT AUDIO OUTPUT
Pin Circuit Description
1 X712 22DG/LB MICROPHONE 1 IN (+)
2 X703 22OR/GY LEFT AUDIO OUTPUT
2 X722 22LB/DG MICROPHONE 2 IN (+)
3 A116 14YL/RD FUSED B(+) (I.O.D.)
4 - -
5 C7 10DB BLOWER MOTOR SUPPLY
6 - -
7 L91 18WT/DB HAZARD SWITCH SENSE
8 X792 22LB/DG MICROPHONE IN (-)
9 X795 22DG COMMON AUDIO OUTPUT
10 X835 22OR/GY SENSOR GROUND
11 X793 22DG/YL MICROPHONE FEED
12 M27 18YL/LB READING/RAIL LAMPS DRIVER
13 M24 18YL/WT COURTESY LAMPS DRIVER
14 A901 18RD -
15 A417 18RD FUSED B (+)
16 C83 20DB/LG
17 C830 20DB/YL
18 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
19 A909 18RD FUSED B(+)
20 A106 20LB/RD FUSED B(+)
21 V71 20VT/OR S/C SIGNAL 1
22 V72 20OR/VT S/C SIGNAL 2
23 V937 20VT/BR S/C RETURN
24 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
25 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
26 G38 18GY GARAGE DOOR OPENER ENABLE
27 F1 20PK/WT IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
28 B15 20DG/WT BRAKE SIGNAL 1
29 B16 18LB/DG BRAKE SIGNAL 2
30 B25 20DG/WT PARK BRAKE SWITCH SENSE
31 F921 20PK/YL FUSED RUN RELAY OUTPUT
32 A108 18LG/RD FUSED B(+)
33 D21 20WT/BR SCI TRANSMIT
33 P806 18LG/WT INVERTER STATUS INDICATOR DRIVER
34 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
35 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR SUPPLY
36 D64 20WT/LB CAN C BUS (-)
37 D65 20WT/LG CAN C BUS (+)
38 D71 20WT/DB DIAGNOSTIC CAN C (-)
39 D72 20WT/LB DIAGNOSTIC CAN C (+)
40 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
41 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
42 D506 20WT/DG LIN BUS
43 F941 20PK/LG FUSED RUN/START RELAY OUTPUT
Component Location - 38
Component Location - 46
Component Location - 37
Component Location - 41
