C202
Component ID: 30
Component : C202

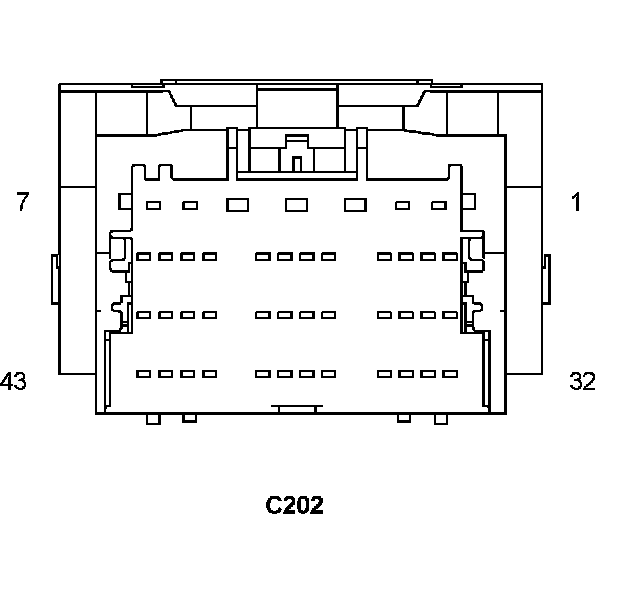

Connector:
Name : C202
Color :
# of pins : 43
Gender : FEMALE
Pin Circuit Description
1 X202 18DG/VT RIGHT FRONT SPEAKERS (+)
2 X292 18DG/YL RIGHT FRONT SPEAKERS (-)
3 A285 10RD/DB CABIN HEATER 1 RELAY OUTPUT
4 A286 10RD/WT CABIN HEATER 2 RELAY OUTPUT
5 A288 10RD/LB CABIN HEATER 3 RELAY OUTPUT
6 X201 18GY/VT LEFT FRONT SPEAKERS (+)
7 X291 18GY/YL LEFT FRONT SPEAKERS (-)
8 X295 18GY/DG LEFT REAR SPEAKER (-)
9 X205 18GY/LG LEFT REAR SPEAKER (+)
10 X296 18DG/GY RIGHT REAR SPEAKER (-)
11 X206 18DG/LG RIGHT REAR SPEAKER (+)
12 X202 18DG/VT RIGHT FRONT SPEAKERS (+)
13 X292 18DG/YL RIGHT FRONT SPEAKERS (-)
14 X201 18GY/VT LEFT FRONT SPEAKERS (+)
15 X291 18GY/YL LEFT FRONT SPEAKERS (-)
16 X62 18GY/OR AMPLIFIED ANTENNA FEED
17 X544 18DG/DB AUDIO RIGHT 2
18 X545 18DG/LB AUDIO LEFT 2
19 X546 18GY/OR AUDIO RETURN 2
20 X534 18GY/BR VIDEO SIGNAL 1
21 X535 18GY/YL VIDEO COMMON 1
22 X536 18NA VDO-VIDEO SHIELD 1
23 X538 18DG/WT AUDIO RIGHT 1
24 X539 18DG/TN AUDIO LEFT 1
25 X540 18GY/VT AUDIO RETURN 1
26 X550 18DG/YL AUDIO RIGHT 3
27 X551 18DG/VT AUDIO LEFT 3
28 X552 18GY/LB AUDIO RETURN 3
29 X543 18NA VIDEO SHIELD 2
30 X541 18GY/LB VIDEO SIGNAL 2
31 X542 18GY/YL VIDEO COMMON 2
32 F307 18LB/PK FUSED RUN/ACCESSORY RELAY OUTPUT
33 A412D 18RD FUSED B(+) (I.O.D.)
34 A413 18RD FUSED B(+) (I.O.D.)
35 F943D 18PK/LG FUSED RUN/START RELAY OUTPUT
36 F20C 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
37 K855 18BR/OR 5 VOLT SUPPLY 1
38 K23 18BR/WT APP SIGNAL 1
39 K167 18BR/YL APP SENSOR GROUND 1
40 K400 18BR/VT APP SENSOR GROUND 2
41 K29 18WT/BR APP SIGNAL 2
42 K857 18BR/LG 5 VOLT SUPPLY
43 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
Component Location - 38
Component Location - 46
Component Location - 37
Component Location - 41

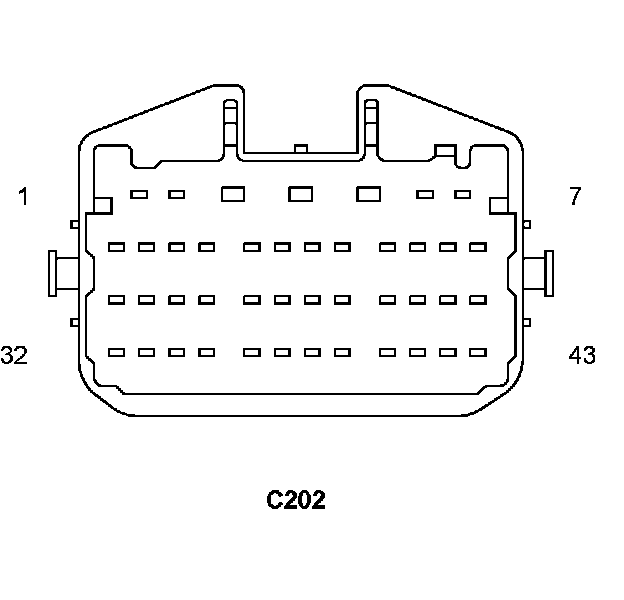

Connector:
Name : C202
Color :
# of pins : 43
Gender : MALE
Pin Circuit Description
1 X202 18DG/VT RIGHT FRONT SPEAKERS (+)
2 X292 18DG/YL RIGHT FRONT SPEAKERS (-)
3 A285 10RD/DB CABIN HEATER 1 RELAY OUTPUT
4 A286 10RD/WT CABIN HEATER 2 RELAY OUTPUT
5 A288 10RD/LB CABIN HEATER 3 RELAY OUTPUT
6 X201 18GY/VT LEFT FRONT SPEAKERS (+)
7 X291 18GY/YL LEFT FRONT SPEAKERS (-)
8 X295 18GY/DG LEFT REAR SPEAKER (-)
8 X57 18DG/OR RADIO LEFT AUDIO (-)
9 X205 18GY/LG LEFT REAR SPEAKER (+)
9 X51 18DG/DB RADIO LEFT AUDIO (+)
10 X296 18DG/GY RIGHT REAR SPEAKER (-)
10 X58 18GY/OR RADIO RIGHT AUDIO (-)
11 X206 18DG/LG RIGHT REAR SPEAKER (+)
11 X52 18GY/DB RADIO RIGHT AUDIO (+)
12 X202 18DG/VT RIGHT FRONT SPEAKERS (+)
12 X208 18GY/DG AMPLIFIED RIGHT FRONT SPEAKER (+)
13 X292 18DG/YL RIGHT FRONT SPEAKERS (-)
13 X298 18GY/LG AMPLIFIED RIGHT FRONT SPEAKER (-)
14 X201 18GY/VT LEFT FRONT SPEAKERS (+)
14 X209 18GY/OR AMPLIFIED LEFT FRONT SPEAKER (+)
15 X291 18GY/YL LEFT FRONT SPEAKERS (-)
15 X299 18GY/YL AMPLIFIED LEFT FRONT SPEAKER (-)
16 X62 18GY/OR AMPLIFIED ANTENNA FEED
17 X544 22DG/DB AUDIO RIGHT 2
18 X545 22DG/LB AUDIO LEFT 2
19 X546 22GY/OR AUDIO RETURN 2
20 X534 22GY/BR VIDEO SIGNAL 1
21 X535 22GY/YL VIDEO COMMON 1
22 X536 18NA AUDIO RIGHT 1
23 X538 18DG/WT AUDIO RIGHT 1
24 X539 18DG/TN AUDIO LEFT 1
25 X540 22GY/VT AUDIO RETURN 1
26 X550 22DG/YL AUDIO RIGHT 3
27 X551 22DG/VT AUDIO LEFT 3
28 X552 22GY/LB AUDIO RETURN 3
29 X543 18NA VIDEO SHIELD 2
30 X541 22GY/LB VIDEO SIGNAL 2
31 X542 22GY/YL VIDEO COMMON 2
32 F307 18LB/PK FUSED RUN/ACCESSORY RELAY OUTPUT
33 A412 18RD FUSED B(+) (I.O.D.)
34 A413 18RD FUSED B(+) (I.O.D.)
35 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
36 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
37 K855 20BR/OR 5 VOLT SUPPLY 1
38 K23 20BR/WT APP SIGNAL 1
39 K167 20BR/YL APP SENSOR GROUND 1
40 K400 20BR/VT APP SENSOR GROUND 2
41 K29 20WT/BR APP SIGNAL 2
42 K857 20BR/LG 5 VOLT SUPPLY
43 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
Component Location - 38
Component Location - 46
Component Location - 37
Component Location - 41
