C232

Component ID: 33
Component : C232

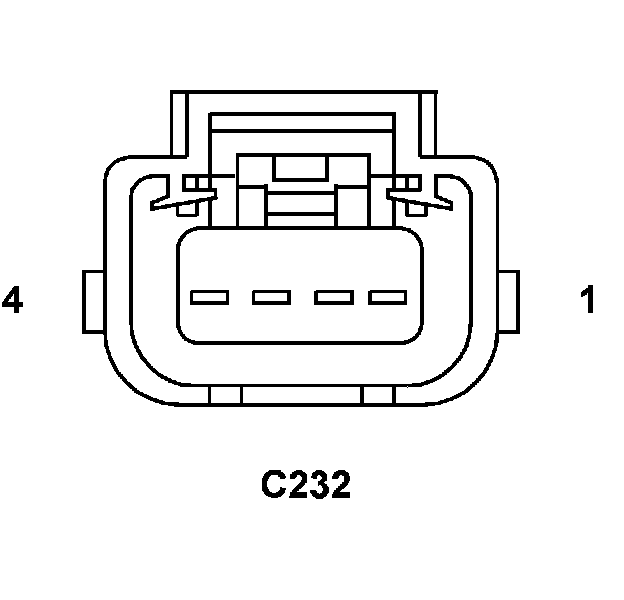

Connector:
Name : C232
Color :
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
2 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
3 - -
4 - -

Component Location - 33




Component Location - 40




Component Location - 45




Component Location - 3






Connector:
Name : C232
Color :
# of pins : 4
Gender : MALE




Pin Circuit Description
1 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
2 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
3 - -
4 - -

Component Location - 33




Component Location - 40




Component Location - 45




Component Location - 3
