C304

Component ID: 34
Component : C304

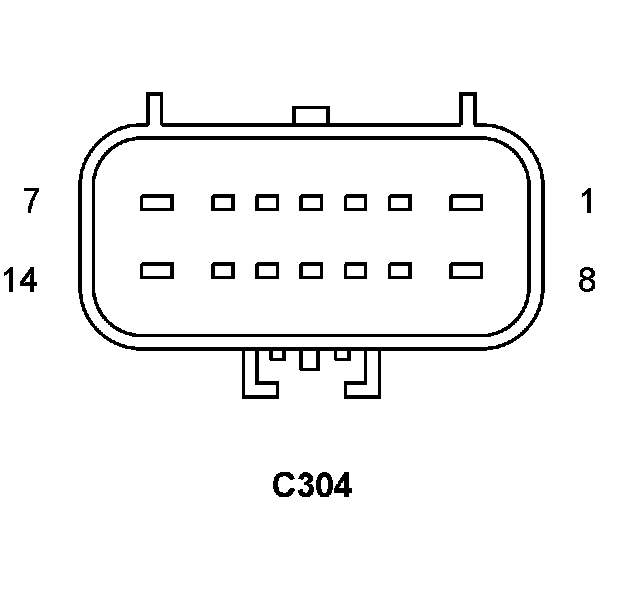

Connector:
Name : C304
Color :
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
2 D96 18WT/LB SIREN SIGNAL CONTROL
3 Z907 18BK/GY GROUND
4 Z907 18BK/DG GROUND
5 Z907 18BK/WT GROUND
6 - -
7 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
8 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
9 D508 18WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
10 Z907 18BK/YL GROUND
11 Z907 18BK/PK GROUND
12 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
13 A412 18RD FUSED B(+)
14 - -

Component Location - 6




Component Location - 29




Component Location - 28

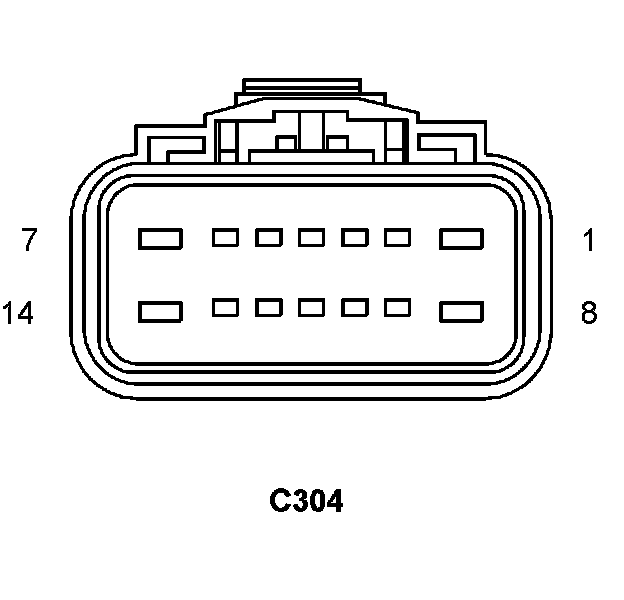

Connector:
Name : C304
Color :
# of pins : 14
Gender : MALE




Pin Circuit Description
1 Z907 18BK/GY GROUND
2 Z907 18BK/PK GROUND
3 Z908 18BK/DB GROUND
4 Z907 10BK GROUND
5 Z907 18BK/PK GROUND
5 Z907 18BK/WT GROUND
6 - -
7 F943 18PK/YL FUSED RUN/START RELAY OUTPUT
8 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
9 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
10 Z907 18BK/DG GROUND
10 Z907 18BK/YL GROUND
11 Z907 18BK/YL GROUND
11 Z907 18BK/PK GROUND
12 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
13 A412 18RD FUSED B(+)
14 - -

Component Location - 6




Component Location - 29




Component Location - 28
