C310

Component ID: 39
Component : C310

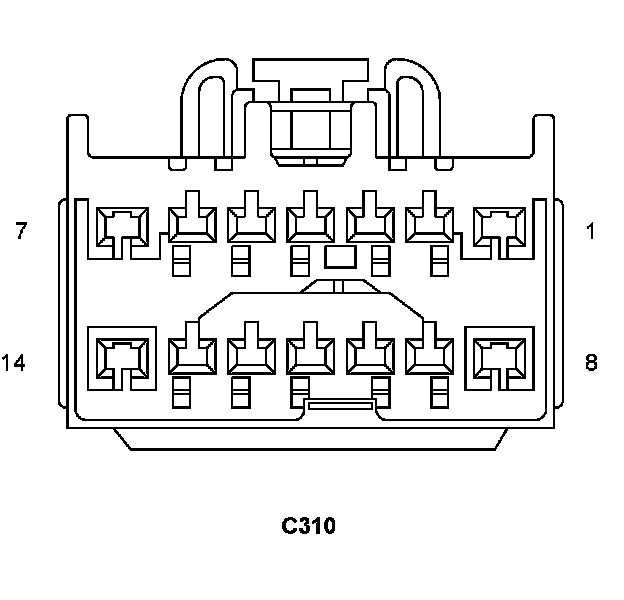

Connector:
Name : C310
Color :
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 Z913 14BK/VT GROUND
2 - -
3 X296 18DG/GY RIGHT REAR SPEAKER (-)
4 X206 18DG/LG RIGHT REAR SPEAKER (+)
5 Z913 16BK/GY GROUND
6 P237 14DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
7 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
8 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
9 P235 14LG/TN SECONDARY LOCK DRIVER
10 P34 16TN/LB RIGHT REAR DOOR UNLOCK DRIVER
11 P38 16TN/DB RIGHT REAR DOOR LOCK DRIVER
12 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
13 - -
14 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)

Component Location - 52




Component Location - 56

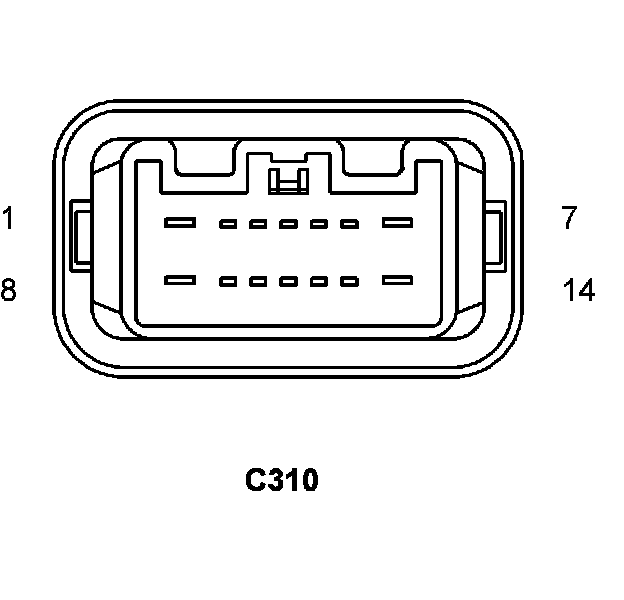

Connector:
Name : C310
Color :
# of pins : 14
Gender : MALE




Pin Circuit Description
1 Z913 14BK/VT GROUND
Pin Circuit Description
1 Z913 16BK/VT GROUND
2 - -
3 X296 18DG/GY RIGHT REAR SPEAKER (-)
4 X206 18DG/LG RIGHT REAR SPEAKER (+)
5 Z913 18BK/GY GROUND
6 P237 16DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
7 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
7 Q15 16OR/LB WINDOW LOCK OUT SWITCH OUTPUT
8 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
8 Q612 16OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
9 P235 16LG/TN SECONDARY LOCK DRIVER
10 P34 16TN/LB RIGHT REAR DOOR UNLOCK DRIVER
11 P38 16TN/DB RIGHT REAR DOOR LOCK DRIVER
12 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
13 - -
14 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
14 Q412 16OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)

Component Location - 52




Component Location - 56
