C312

Component ID: 41
Component : C312

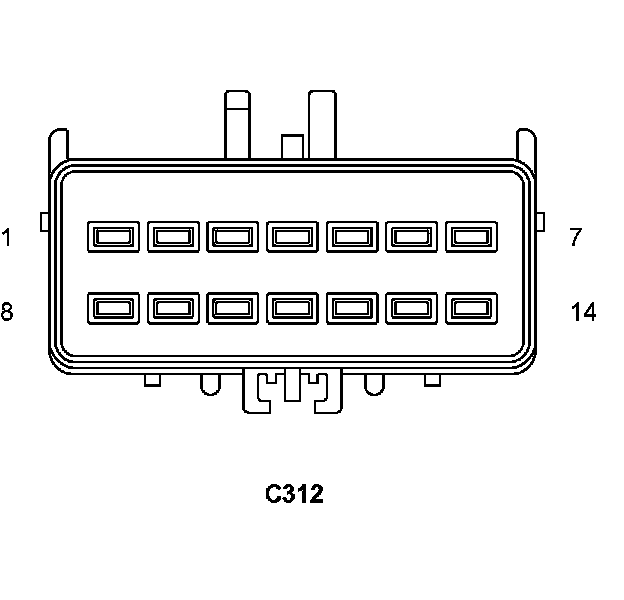

Connector:
Name : C312
Color :
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
Pin Circuit Description
1 P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 A27 20RD/LB FUSED B(+)
3 D64 20WT/LB CAN C BUS (-)
4 D65 20WT/LG CAN C BUS (+)
5 R262 20WT/LB PASSENGER SEAT TRACK POSITION SENSOR SIGNAL
6 R264 20VT/LB PASSENGER SEAT TRACK POSITION SENSOR SUPPLY
7 Z913 20BK/DG GROUND
8 - -
9 P693 16LG/WT HEATED SEAT MODULE SUPPLY
10 D65 20WT/LG CAN C BUS (+)
11 D64 20WT/LB CAN C BUS (-)
12 D506 20WT/DG LIN BUS
13 Z914 16BK GROUND
14 - -

Component Location - 50




Component Location - 54

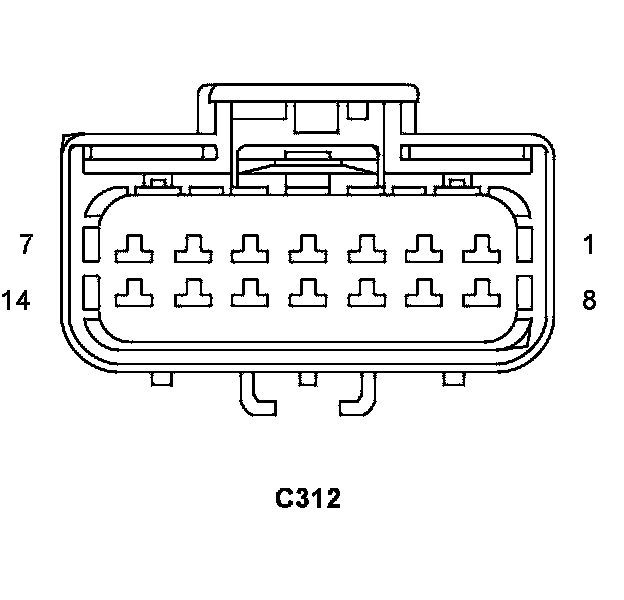

Connector:
Name : C312
Color :
# of pins : 14
Gender : MALE




Pin Circuit Description
1 P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
Pin Circuit Description
1 P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 A27 20RD/LB FUSED B(+)
3 D64 20WT/LB CAN C BUS (-)
4 D65 20WT/LG CAN C BUS (+)
5 R262 20WT/LB PASSENGER SEAT POSITION SENSOR DATA
6 R264 20VT/LB PASSENGER SEAT TRACK POSITION SENSOR SUPPLY
7 Z913 20BK/DG GROUND
8 - -
9 P693 16LG/WT HEATED SEAT MODULE SUPPLY
10 D65 20WT/BK CAN C BUS (+)
11 D64 20WT/LB CAN C BUS (-)
12 D506 20WT/DG LIN BUS
13 Z914 16BK GROUND
14 - -

Component Location - 50




Component Location - 54
