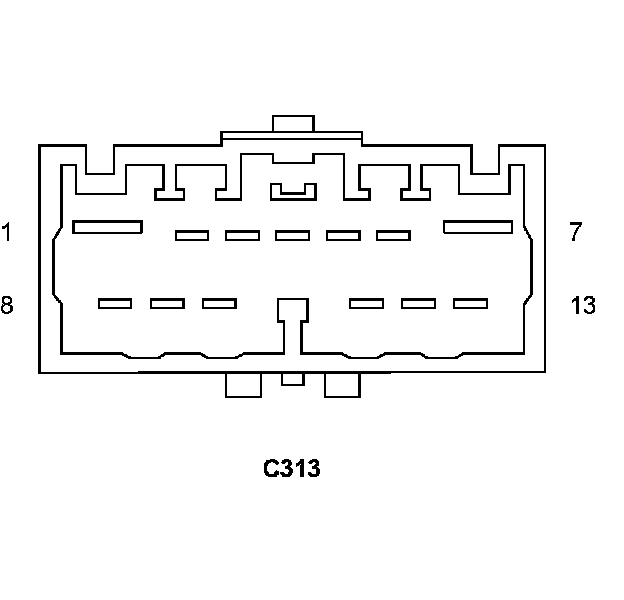

C313

Component ID: 42
Component : C313

Connector:
Name : C313
Color :
# of pins : 13
Gender : FEMALE




Pin Circuit Description
1 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
3 X712 20BK/LB MICROPHONE 1 IN (+)
3 X712 22BK/LB MICROPHONE 1 IN (+)
4 X722 20BK MICROPHONE 2 IN (+)
4 X722 22BK MICROPHONE 2 IN (+)
5 X792 20BK/RD MICROPHONE IN (-)
5 X792 22BK/RD MICROPHONE IN (-)
6 L1 18BK/LB BACKUP LAMP FEED
6 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
7 Z920 12BK/OR GROUND
8 A906 14RD FUSED B(+)
9 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
10 X793 20BK/WT MICROPHONE FEED
10 X793 22BK/WT MICROPHONE FEED
11 X835 20BK/YL SENSOR GROUND
11 X835 22BK/YL SENSOR GROUND
12 Z919 20BK/RD GROUND
13 Z919 14BK/TN GROUND

Component Location - 60






Connector:
Name : C313
Color :
# of pins : 13
Gender : MALE




Pin Circuit Description
1 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
3 X712 22DG/LB MICROPHONE 1 IN (+)
4 X722 22LB/DG MICROPHONE 2 IN (+)
5 X792 22LB MICROPHONE IN (-)
5 X792 22LB/DG MICROPHONE IN (-)
6 L1 18WT/LG BACKUP LAMP FEED
7 Z920 12BK/OR GROUND
8 A906 14RD FUSED B(+)
9 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
10 X793 22DG/YL MICROPHONE FEED
11 X835 22OR/GY SENSOR GROUND
12 Z919 20BK/DG GROUND
13 Z919 14BK/TN GROUND

Component Location - 60
