C314

Component ID: 43

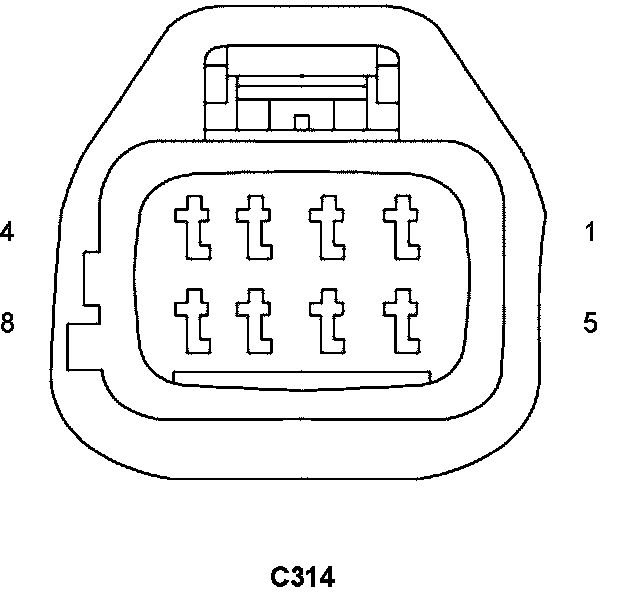

Component : C314

Connector:
Name : C314
Color :
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 B4 18LG LEFT REAR WHEEL SPEED SENSOR SUPPLY
2 B3 18LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18YL RIGHT REAR WHEEL SPEED SENSOR SUPPLY
4 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
5 - -
6 P37 20LG/TN DOOR LOCK SWITCH RETURN
7 N4 18DB/WT FUEL LEVEL SIGNAL
8 N1 16DB/OR FUSED FUEL PUMP OUTPUT

Component Location - 56




Component Location - 57




Component Location - 58






Connector:
Name : C314
Color :
# of pins : 8
Gender : MALE




Pin Circuit Description
1 B4 18LG LEFT REAR WHEEL SPEED SENSOR SUPPLY
2 B3 18LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18YL RIGHT REAR WHEEL SPEED SENSOR SUPPLY
4 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
5 - -
6 K91 18DB/YL SENSOR GROUND
7 N4 18DB/WT FUEL LEVEL SIGNAL
8 N1 16DB/OR FUSED FUEL PUMP OUTPUT

Component Location - 56




Component Location - 57




Component Location - 58
