C315

Component ID: 44
Component : C315

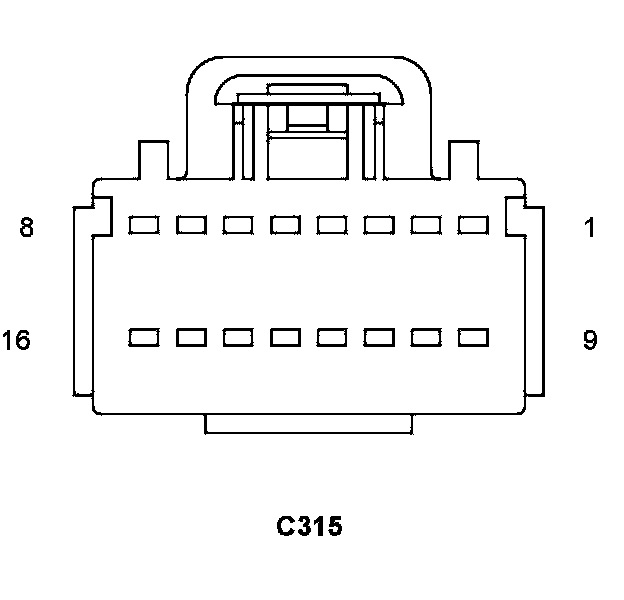

Connector:
Name : C315
Color :
# of pins : 16
Gender : FEMALE




Pin Circuit Description
1 X534 22GY/BR VIDEO SIGNAL 1
2 X535 22GY/YL VIDEO COMMON 1
3 X536 20BK/BK VIDEO SHIELD 1
4 X538 22DG/WT AUDIO RIGHT 1
5 X539 22DG/TN AUDIO LEFT 1
6 X540 22GY/VT AUDIO RETURN 1
7 - -
8 A413 18RD FUSED B(+) (I.O.D.)
9 Z919 18BK/DB GROUND
10 X544 22DG/DB AUDIO RIGHT 2
11 X545 22DG/LB AUDIO LEFT 2
12 X546 22GY/OR AUDIO RETURN 2
13 X550 22DG/YL AUDIO RIGHT 3
14 X551 22DG/VT AUDIO LEFT 3
15 X552 22GY/LB AUDIO RETURN 3
16 - -

Component Location - 62




Component Location - 59

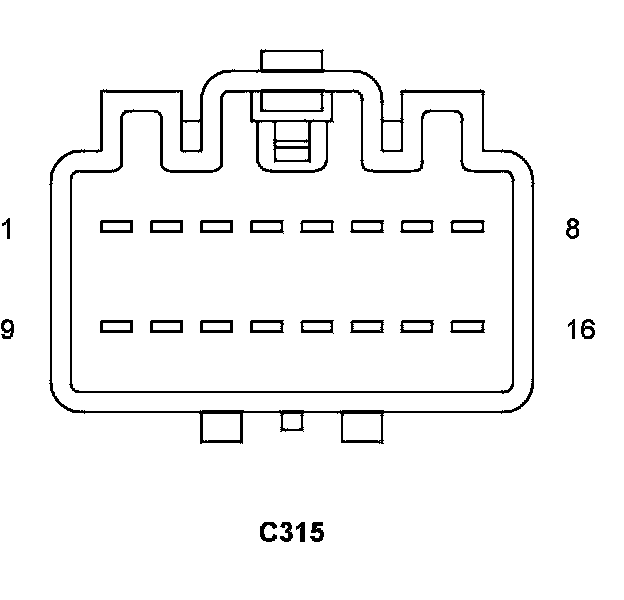

Connector:
Name : C315
Color :
# of pins : 16
Gender : MALE




Pin Circuit Description
1 X534 22GY/BR VIDEO SIGNAL 1
2 X535 22GY/YL VIDEO COMMON 1
3 X536 18NA VIDEO SHIELD 1
4 X538 18DG/WT AUDIO RIGHT 1
5 X539 18DG/TN AUDIO LEFT 1
6 X540 22GY/VT AUDIO RETURN 1
7 - -
8 A413C 18RD FUSED B(+) (I.O.D.)
9 Z919 18BK/DB GROUND
10 X544 22DG/DB AUDIO RIGHT 2
11 X545 22DG/LB AUDIO LEFT 2
12 X546 22GY/OR AUDIO RETURN 2
13 X550 22DG/YL AUDIO RIGHT 3
14 X551 22DG/VT AUDIO LEFT 3
15 X552 22GY/LB AUDIO RETURN 3
16 - -

Component Location - 62




Component Location - 59
