C316

Component ID: 45
Component : C316

Connector:

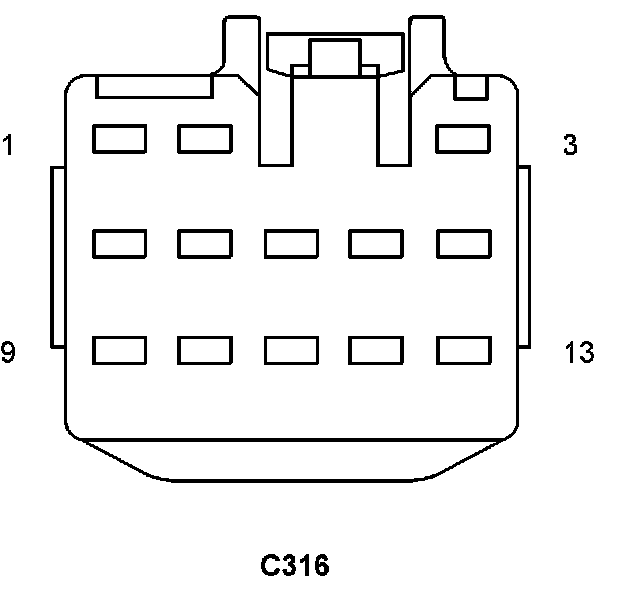

Name : C316
Color :
# of pins : 13
Gender : FEMALE




Pin Circuit Description
1 P76 20TN/LB
Pin Circuit Description
1 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
2 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
2 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
3 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
4 G160 20VT/LG PASSENGER DOOR LOCK SWITCH MUX
5 G74 20VT/WT PASSENGER DOOR AJAR SWITCH SENSE
5 G75 20VT DRIVER DOOR AJAR SWITCH SENSE
6 P37 20LG/TN DOOR LOCK SWITCH RETURN
7 - -
8 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
9 - -
10 - -
11 - -
12 - -
13 - -

Component Location - 51




Component Location - 37






Connector:
Name : C316
Color :
# of pins : 13
Gender : MALE




Pin Circuit Description
1 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
Pin Circuit Description
1 P76 20TN/LB MIRROR COMMON DRIVER
2 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
2 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
3 - -
3 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
4 - -
4 G160 20VT/LG PASSENGER DOOR LOCK SWITCH MUX
5 G74 20VT/WT PASSENGER DOOR AJAR SWITCH SENSE
6 - -
6 P37 20LG/TN DOOR LOCK SWITCH RETURN
7 - -
8 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
9 - -
10 - -
11 - -
12 - -
13 - -

Component Location - 51




Component Location - 37
