C319

Component ID: 48
Component : C319

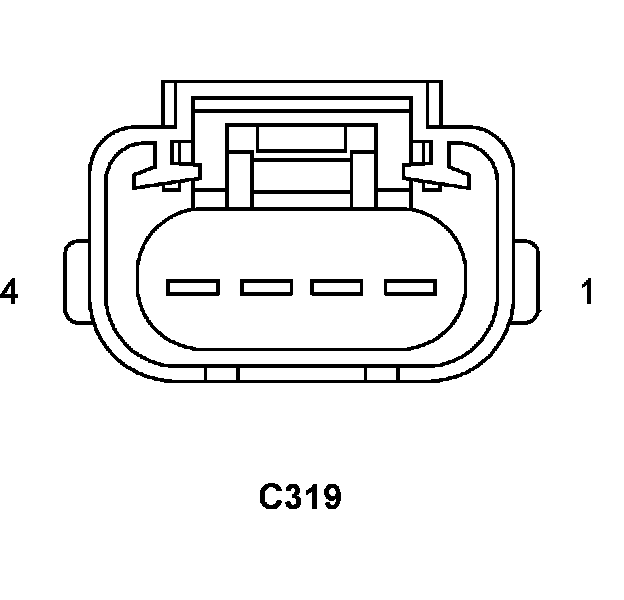

Connector:
Name : C319
Color :
# of pins : 4
Gender : FEMALE

Pin Circuit Description
1 R57 20LG/GY DRIVER SEAT BELT SWITCH SENSE
2 Z913 20BK/WT GROUND
3 R55 20LG/DG DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1
4 R53 20LG/YL DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

Component Location - 50

Component Location - 54

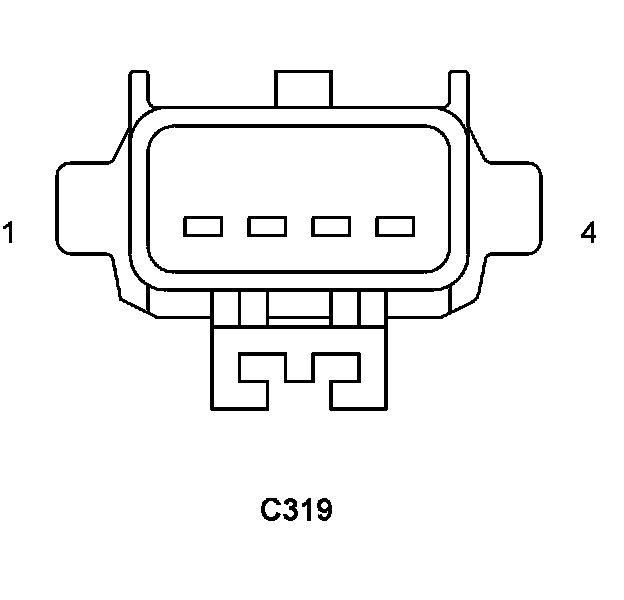

Connector:
Name : C319
Color :
# of pins : 4
Gender : MALE

Component Location - 54
