C320

Component ID: 49
Component : C320

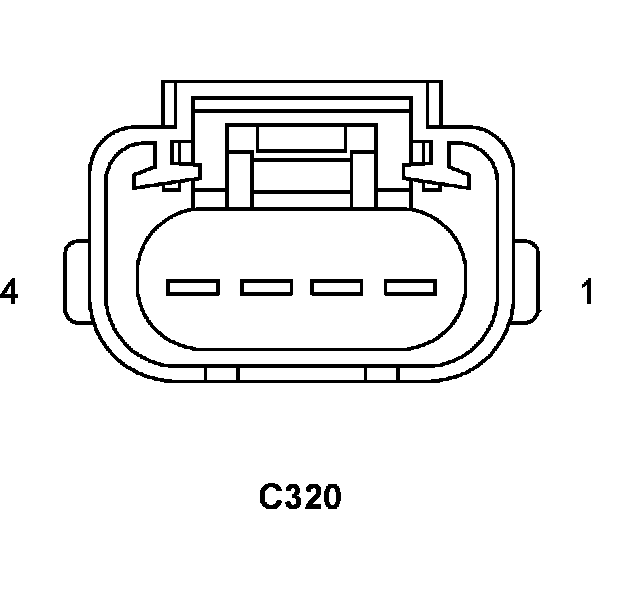

Connector:
Name : C320
Color :
# of pins : 4
Gender : FEMALE

Pin Circuit Description
1 R58 20LB/GY PASSENGER SEAT BELT SWITCH SIGNAL
2 R60 20LB/TN PASSENGER SEAT BELT SWITCH GROUND
3 R56 20LB/DG PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1
4 R54 20LB/YL PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

Component Location - 50

Component Location - 54

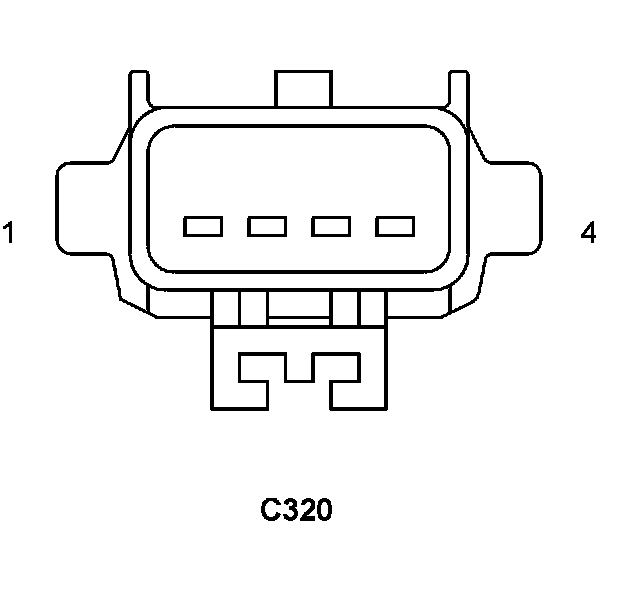

Connector:
Name : C320
Color :
# of pins : 4
Gender : MALE

Component Location - 54
